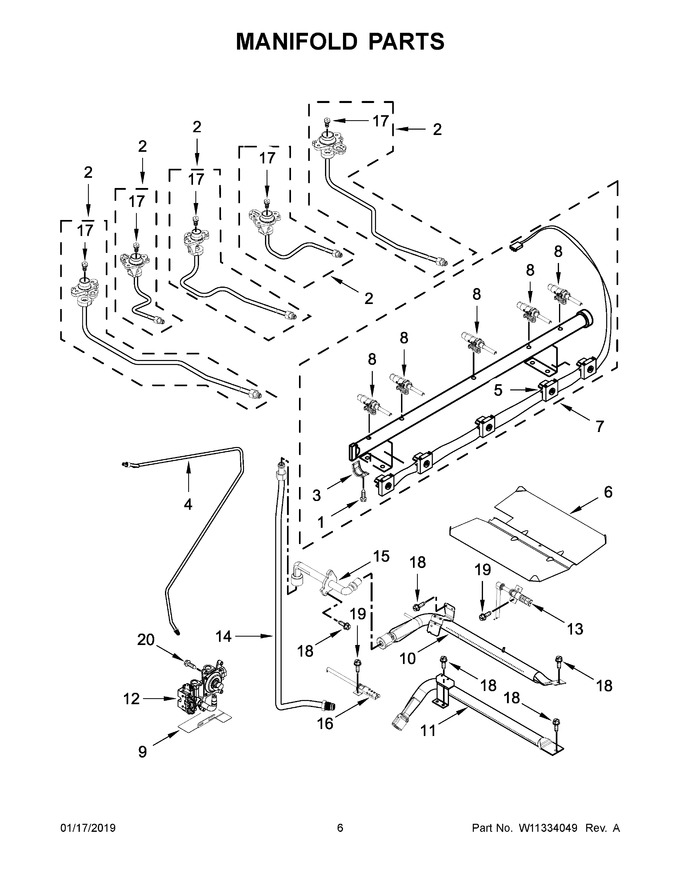

04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W11197500		Assembly, Orifice Holder (15k) (left Front)   (Replaces: W10473936)				$ 111.86
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
4	W10510125		Tubing, Main Supply				$ 218.65
5	W11233074		Harness, Igniter (includes Switches)   (Replaces: W10811691)				$ 190.30
6	3601P336-45		Baffle, Broil Burner				$ 227.09
7	W10859728		Assembly, Manifold				$ 358.38
8	WPW10247744		Valve, Gas (right Rear)   (Replaces: W10247744)				$ 280.12
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	W10919226		Valve, Gas   (Replaces: W10720102)			Immediately	$ 180.55
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 103.98
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 189.82
15	W10776437		Fitting, Broil				$ 103.45
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10178934		Orifice (12k) (right Front)			Immediately	$ 103.60
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
17A	W10732136		Orifice (5k) (right Rear)				$ 94.43
17B	WPW10170507		Orifice (8k) (left Rear)   (Replaces: W10170507)				$ 97.85
17C	WPW10347414		Orifice (15k) (left Front)   (Replaces: W10347414)				$ 90.50
17D	W10657947		Orifice (8k) (center)				$ 22.40
2A	W11643127		Assembly, Orifice Holder (9.5k) (left Rear)   (Replaces: W10732140)				$ 87.06
2B	W11661950		Assembly, Orifice Holder (15k) (right Front)   (Replaces: W10732137)				$ 84.71
2C	W10732139		Assembly, Orifice Holder (5k) (right Rear)				$ 114.80
2D	W10836764		Assembly, Orifice Holder (8k) (center)				$ 125.23
8A	WPW10279614		Valve, Gas (left Rear)   (Replaces: W10279614)				$ 279.81
8B	WPW10279615		Valve, Gas (left Front & Right Front)   (Replaces: W10279615)				$ 258.91
8C	W10850894		Valve, Gas (center)				$ 278.32
NI	W11204348		Kit, Lp 5 Orifice Conversion   (Replaces: W11087531)				$ 126.50
NI	W11087486		Kit, Lp Conversion (bake/broil)   (Replaces: W10566535)			Immediately	$ 117.95
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
