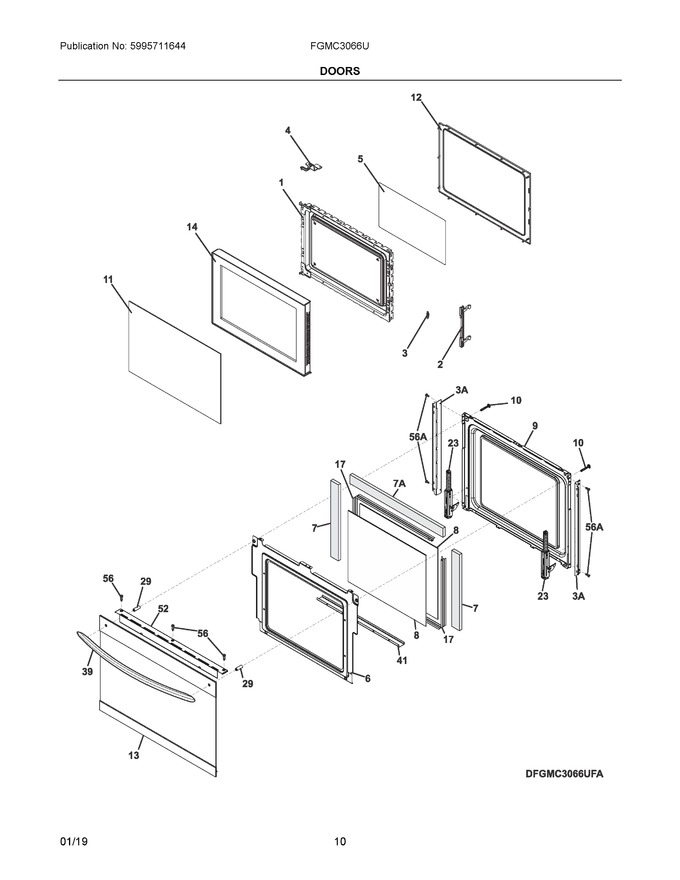

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520033		Frame Assembly, Door		Appelez-nous	-
2	5304519330		Latch Assembly, Door				$ 13.66
3	5304520034		Spring, Latch		Appelez-nous	-
4	5304519333		Hinge, Door, Upper				$ 27.36
5	5304520036		Film, Door, Inner				$ 13.66
6	808474502		Shield, Wool, Oven Door				$ 120.50
7	807887502		Insulation, Door, Side, (2)				$ 16.85
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502504)			Immediately	$ 128.50
9	808474604		Liner, Oven Door, Black				$ 107.49
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 18.31
11	5304520037		Screen, Door				$ 137.47
12	5304520035		Gasket, Door		Appelez-nous	-
13	5304514956		Door Assembly, Outer, Black Stainless, W/trim				$ 377.85
14	5304520038		Panel, Door				$ 116.11
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 28.65
23	139010300		Hinge, Door, Turquoise, Dual Spring   (Replaces: 139010308)				$ 183.18
29	808296701		Spacer, Door Handle, (2)				$ 17.69
39	316554009		Handle, Door/drawer, Black Stainless, W/spacers				$ 210.45
41	5304500644		Support, Glass				$ 19.35
52	5304520856		Trim, Door, Black, Top   (Replaces: 808109102)				$ 88.47
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 15.75
3A	5304520787		Trim, Oven Door, Black, Side Vent   (Replaces: 139036601)				$ 68.51
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 15.75
7A	5304505925		Insulation, Door, Upper				$ 16.85
NI	5304497574		Spacer, Cork/rubber, (8)		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 12.60
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
