01 - Cover Sheet

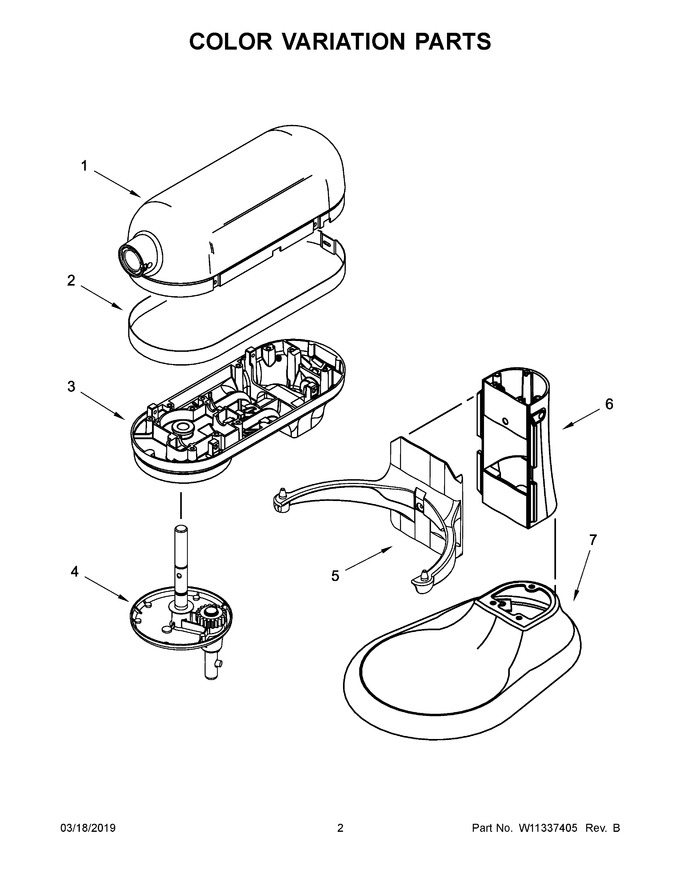

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11123176 | Motor Housing (black Matte) |
|
- | |||||
| 2 | W10870719 | Trim Band (platinum) |
|
- | |||||
| 3 | W11123167 | Lower Gearcase (black Matte) |
|
$ 73.10 | |||||
| 4 | W11123171 | Planetary (black Matte) |
|
$ 86.89 | |||||
| 5 | W11328664 | Bowl Support & Pins (black Matte) |
|
- | |||||
| 6 | W11123140 | Column & Pins (black Matte) |
|
- | |||||
| 7 | W11123131 | Base & Foot Assembly (black Matte) |
|
- | |||||
| 1A | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 1B | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 3A | W10327958 | Lower Gearcase (contour Silver) |
|
$ 92.72 | |||||
| 3B | 9706331 | Lower Gearcase (empire Red) |
|
$ 92.72 | |||||
| 4A | W10327955 | Planetary (contour Silver) |
|
$ 86.87 | |||||
| 4B | WP9708180 | Planetary (empire Red) (Replaces: 9708180) |
|
Immediately | $ 71.94 | ||||
| 5A | W10327966 | Bowl Support & Pins (contour Silver) |
|
- | |||||
| 5B | 9705360 | Bowl Support & Pins (empire Red) |
|
- | |||||
| 6A | W10328003 | Column & Pins (contour Silver) |
|
- | |||||
| 6B | 9705324 | Column & Pins (empire Red) |
|
- | |||||
| 7A | W10328017 | Base & Foot Assembly (contour Silver) |
|
- | |||||
| 7B | 9705348 | Base & Foot Assembly (empire Red) |
|
- |
