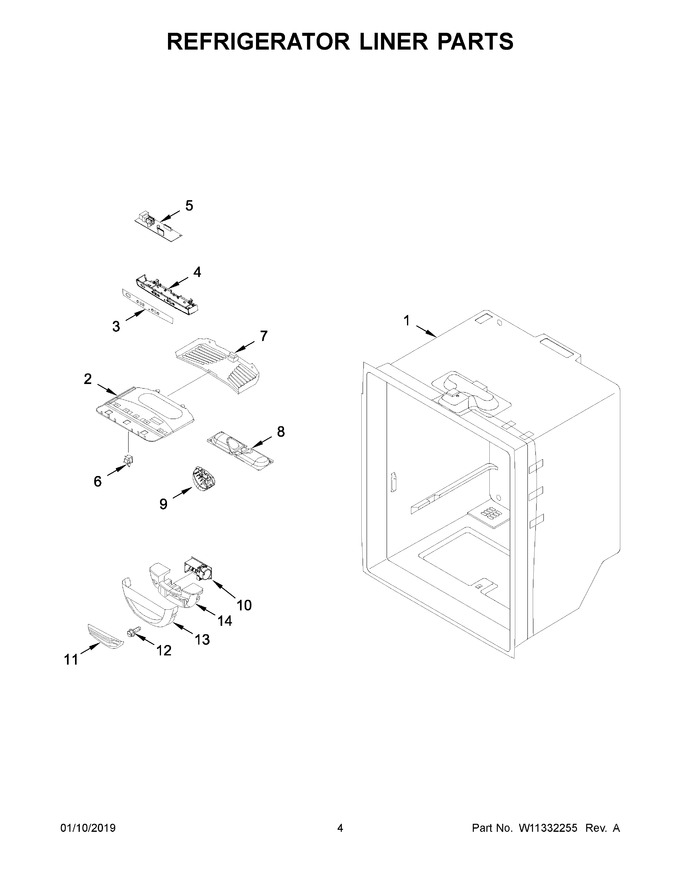

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464757 | Module, Light |
|
$ 108.64 | |||||
| 3 | W10593588 | Overlay |
|
$ 32.92 | |||||
| 4 | WPW10464769 | Module, Control (Replaces: W10464769) |
|
Immediately | $ 108.34 | ||||
| 5 | WPW10503278 | Control, Electronic (Replaces: W10503278) |
|
Immediately | $ 55.44 | ||||
| 6 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 37.23 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 100.97 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 112.13 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 | |||||
| 10 | WPW10594330 | Damper, Control (Replaces: W10594330) |
|
Immediately | $ 129.62 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.14 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 12.16 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 113.00 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 47.76 | |||||
| NI | W11619328 | Harness, Refrigerator Control (includes Thermistor) (Replaces: W10422363) |
|
Immediately | $ 95.67 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
