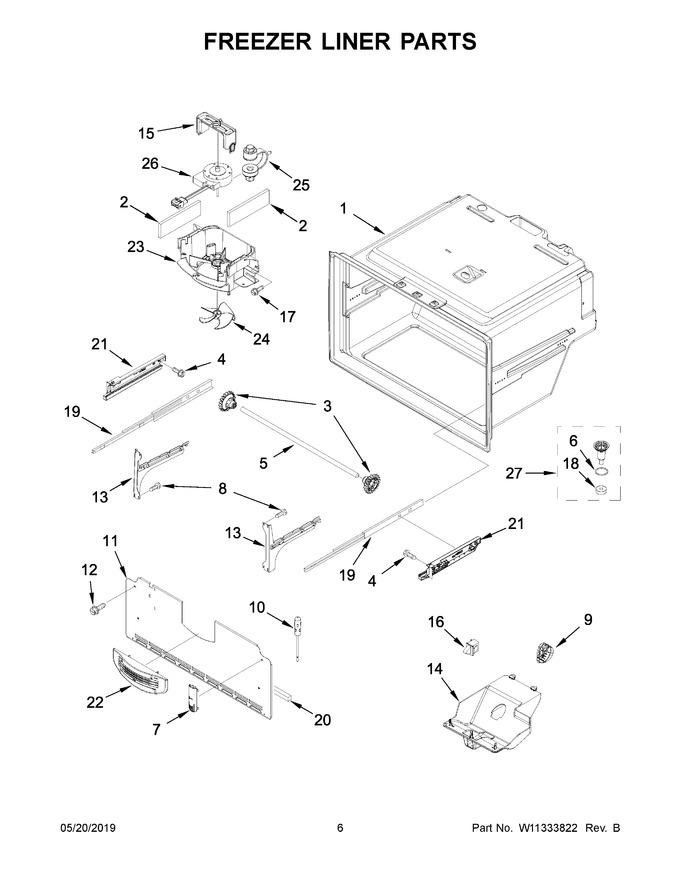

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 4 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 5 | W11028221 | Shaft, Rack (Replaces: W10802332) |
|
$ 33.24 | |||||
| 6 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 7 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 9 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 | |||||
| 10 | W10316760 | Thermistor (Replaces: 12791417SP) |
|
Immediately | $ 72.91 | ||||
| 11 | W10308421 | Cover, Evaporator |
|
$ 291.06 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330991 | Bracket, Door Slide (left Hand) (Replaces: W10330991) |
|
$ 164.31 | |||||
| 14 | W11434460 | Module, Light (Replaces: W10315248) |
|
Immediately | $ 37.26 | ||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 12.24 | ||||
| 16 | W11445850 | Switch, Light (Replaces: 12466111SP) |
|
Immediately | $ 52.62 | ||||
| 17 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 18 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 19 | W11658402 | Slide, Door (Replaces: W10860513) |
|
Immediately | $ 127.51 | ||||
| 20 | W11159728 | Gasket (Replaces: A3189396) |
|
Immediately | $ 28.86 | ||||
| 21 | WPW10284682 | Adapter, Side (left Hand) (Replaces: W10284682) |
|
Immediately | $ 141.38 | ||||
| 22 | W11176847 | Grille, Air (Replaces: 12959901) |
|
$ 124.16 | |||||
| 23 | W11700329 | Shroud, Evaporator (Replaces: 12951401) |
|
Immediately | $ 61.20 | ||||
| 24 | WP67006337 | Blade, Fan (Replaces: 12986101) |
|
Immediately | $ 90.45 | ||||
| 25 | W11249950 | Grommet, Fan Motor (Replaces: W10905511) |
|
Immediately | $ 17.72 | ||||
| 26 | W11334745 | Motor, Evaporator (includes Heater Harness And Defrost Thermostat) (Replaces: W11050039) |
|
Immediately | $ 133.52 | ||||
| 27 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 51.50 | ||||
| 13A | WPW10330993 | Bracket, Door Slide (right Hand) (Replaces: W10330993) |
|
$ 166.09 | |||||
| 21A | WPW10284683 | Adapter, Side (right Hand) (Replaces: W10284683) |
|
$ 217.98 |
