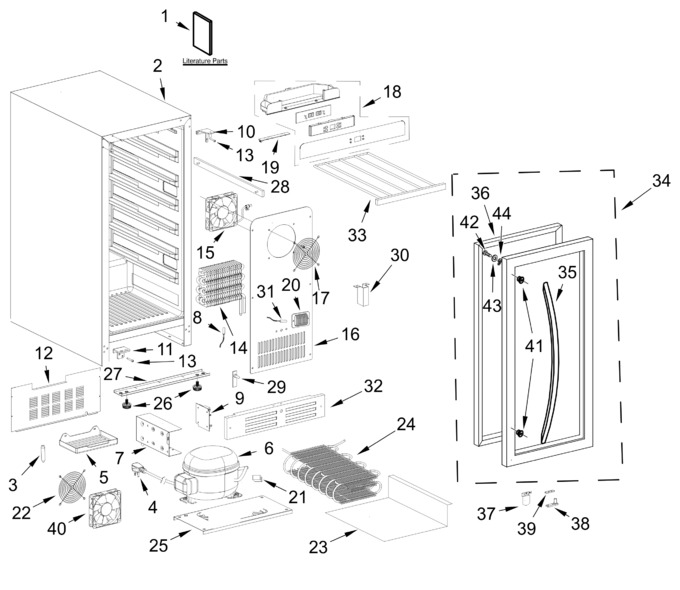

Wine Center Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARI2948F547D7C4C1B6CA0878B04EDFC4EF | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11290639 | Drier Filter |
|
$ 28.69 | |||||
| 4 | W10782176 | Power Cord |
|
- | |||||
| 5 | W11290643 | Water Tray |
|
- | |||||
| 6 | W11290645 | Compressor |
|
$ 615.32 | |||||
| 7 | W11290646 | Cover, Pcb |
|
- | |||||
| 8 | W11290657 | Sensor (red Connector) |
|
$ 125.23 | |||||
| 9 | W11299034 | Main Pcb (Replaces: W11298423) |
|
- | |||||
| 10 | W10782193 | Hinge, Upper Right |
|
$ 76.87 | |||||
| 11 | W11255249 | Hinge, Lower Right |
|
- | |||||
| 12 | W11243799 | Cover, Rear |
|
- | |||||
| 13 | W10782261 | Screw |
|
- | |||||
| 14 | W10782280 | Evaporator |
|
$ 292.43 | |||||
| 15 | W10792631 | Fan Assembly, Evaporator |
|
$ 259.47 | |||||
| 16 | W10782281 | Evaporator Cover |
|
- | |||||
| 17 | W10782263 | Cover, Evaporator Fan |
|
- | |||||
| 18 | W11298637 | Control Panel Assembly |
|
- | |||||
| 19 | W10782283 | Led Light |
|
- | |||||
| 20 | W10782222 | Cover, Sensor |
|
- | |||||
| 21 | W11255778 | Foam |
|
- | |||||
| 22 | W10782255 | Cover, Condenser Fan |
|
- | |||||
| 23 | W11243800 | Cover, Condenser |
|
- | |||||
| 24 | W10782289 | Condenser |
|
$ 308.43 | |||||
| 25 | W11290656 | Baseplate |
|
- | |||||
| 26 | W10782249 | Leg |
|
Immediately | $ 17.81 | ||||
| 27 | W11244017 | Support, Front |
|
$ 91.62 | |||||
| 28 | W10782256 | Slide, Rail |
|
- | |||||
| 29 | W10782243 | Switch |
|
- | |||||
| 30 | W10782242 | Support, Switch |
|
- | |||||
| 31 | W11296649 | Sensor (white Connector) |
|
$ 125.23 | |||||
| 32 | W11255261 | Grille |
|
- | |||||
| 33 | W11255263 | Rack Assembly |
|
- | |||||
| 34 | W11255663 | Door Assembly |
|
- | |||||
| 35 | W11685315 | Handle (Replaces: W11255666) |
|
Immediately | $ 102.81 | ||||
| 36 | W10782286 | Gasket, Door |
|
$ 324.36 | |||||
| 37 | W10782244 | Plate, Switch |
|
- | |||||
| 38 | W10782241 | Axis, Door |
|
$ 63.76 | |||||
| 39 | W11255595 | Stop, Door |
|
$ 76.46 | |||||
| 40 | W11678274 | Fan Assembly, Condenser (Replaces: W10782254) |
|
Immediately | $ 312.34 | ||||
| 41 | W10792640 | Stud, Handle |
|
- | |||||
| 42 | W11104118 | Screw |
|
Immediately | $ 13.94 | ||||
| 43 | W11104122 | Spring, Washer |
|
- | |||||
| 44 | W11104121 | Washer |
|
- | |||||
| W10782192 | Pin, Pcb |
|
- | ||||||
| W10792629 | Energy Guide |
|
- | ||||||
| W11255250 | Hinge, Lower Left |
|
- | ||||||
| ARIAD6F40F56852A297D40D5CDEB4F1DC5F | 0.98oz. R600a |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| W10782260 | Hinge, Upper Left |
|
$ 74.27 |
