SELECT A DIAGRAM
01 - Cover Sheet

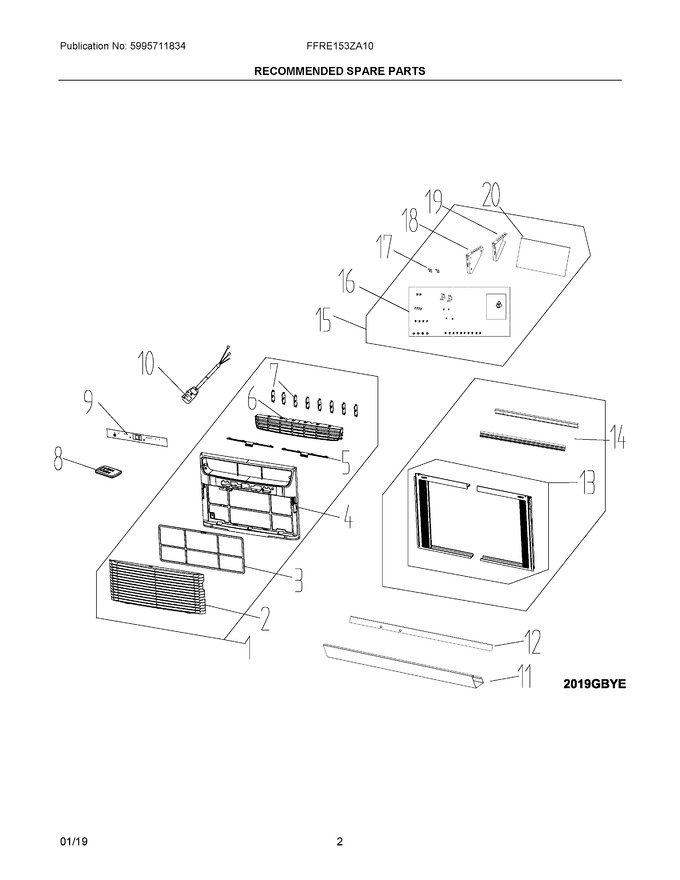

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304520614 | Front Panel, Assembly, W/filter-louvrs |
|
- | |||||
| 2 | 5304516312 | Grille, Air Intake |
|
- | |||||
| 3 | 5304516313 | Filter, Air |
|
- | |||||
| 4 | 5304516314 | Frame, Front |
|
- | |||||
| 5 | 5304516315 | Lever, Air Louver, (2) |
|
- | |||||
| 6 | 5304516316 | Louvre, Horizontal |
|
- | |||||
| 7 | 5304515942 | Louver, Vertical |
|
- | |||||
| 8 | 5304515943 | Remote Control |
|
$ 114.22 | |||||
| 9 | 5304520615 | Overlay, Control |
|
- | |||||
| 10 | 5304520616 | Power Cord, Service |
|
- | |||||
| 11 | 5304520617 | Rail, Top |
|
- | |||||
| 12 | 5304459561 | Seal, Top Rail, Cabinet |
|
- | |||||
| 13 | 5304520618 | Window Filler Kit, Slider Panels |
|
- | |||||
| 14 | 5304520619 | Bracket, Curtain, Quickset |
|
- | |||||
| 15 | 5304520603 | Installation Kit, W/panels, Screws/foam |
|
- | |||||
| 16 | 5304516350 | Hardware Kit, Installation |
|
- | |||||
| 17 | 5304516352 | Safety Lock, L-shape Bracket, (2) |
|
- | |||||
| 18 | 5304516345 | Bracket, Cabinet, Rh |
|
- | |||||
| 19 | 5304516346 | Bracket, Cabinet, Lh |
|
- | |||||
| 20 | 5304516351 | Insulation Panel, Heat |
|
- |
