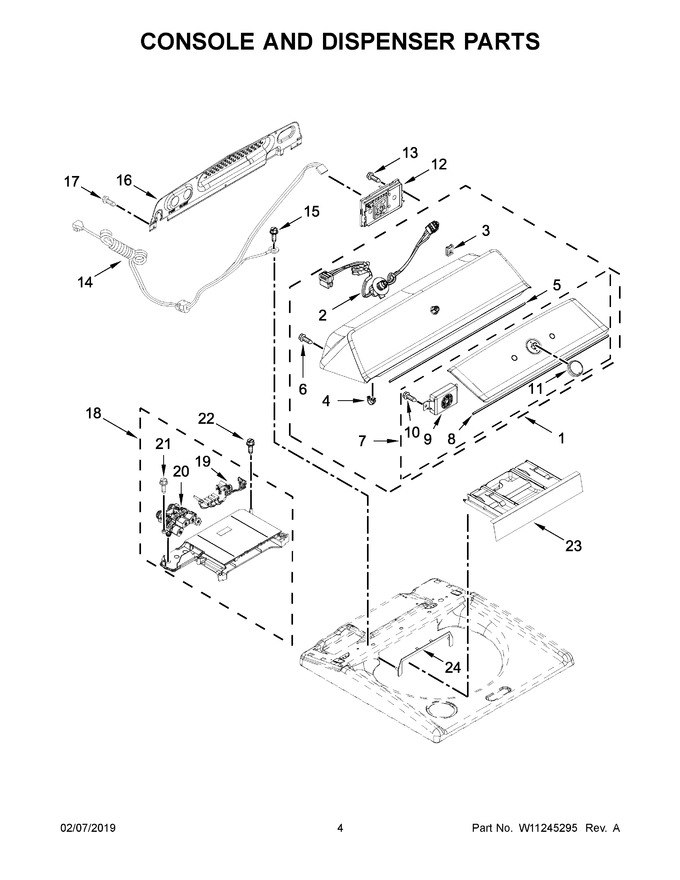

03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11112662 | Console (chrome Shadow) (Replaces: W11035010) |
|
$ 714.13 | |||||
| 2 | W11199207 | Harness, Ui (Replaces: W10771770) |
|
$ 170.43 | |||||
| 3 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 5 | W10726624 | Seal, Console |
|
$ 32.26 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11115283 | Assembly, Fascia (grey) (Replaces: W11035069) |
|
Immediately | $ 552.55 | ||||
| 8 | W10618933 | Seal, Console |
|
- | |||||
| 9 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 10 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 7.30 | |||||
| 11 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 12 | W11417461 | Control Unit Assembly, Machine And Motor (Replaces: W11105151) |
|
$ 523.16 | |||||
| 13 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 14 | W11096073 | Cord, Power (Replaces: W10770108) |
|
$ 126.62 | |||||
| 15 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 16 | W10611544 | Panel, Console Rear Cover |
|
$ 341.23 | |||||
| 17 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 18 | W11172234 | Assembly, Housing (Replaces: W11096285) |
|
Immediately | $ 205.99 | ||||
| 19 | W11193817 | Harness, Valve (Replaces: W10849297) |
|
Immediately | $ 186.35 | ||||
| 20 | W11165546 | Valve, Water Inlet (Replaces: W11096267) |
|
Immediately | $ 108.31 | ||||
| 21 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 22 | W11700520 | Screw (Replaces: 3400061) |
|
$ 14.28 | |||||
| 23 | W11397976 | Assembly, Dispenser Drawer (chrome Shadow) (Replaces: W10795361) |
|
Immediately | $ 106.30 | ||||
| 24 | W10601876 | Assembly, Dispenser Bezel (chrome Shadow) |
|
$ 31.03 |
