SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)

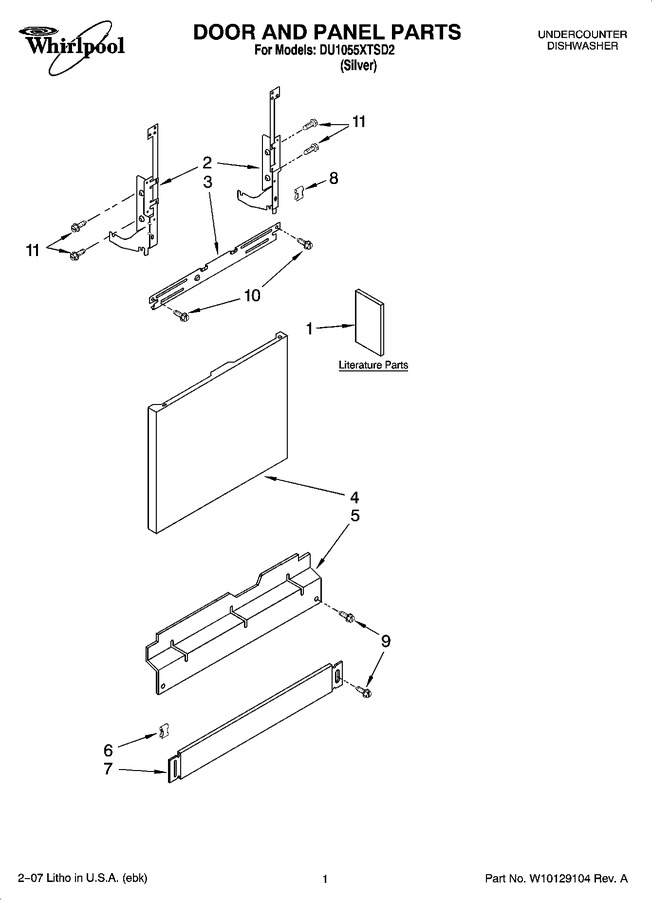

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8575348		Instructions, Installation		Appelez-nous	-
1	W10102783		Energy Guide		Appelez-nous	-
1	W10073760		Guide, Use & Care		Appelez-nous	-
1	W10082651		Tech Sheet		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: 8534857)			Immediately	$ 83.93
2	W11806566		Arm, Hinge (left)   (Replaces: 8534858)			Immediately	$ 71.77
3	8268983		Stiffener, Door				$ 38.77
4	W10127593		Panel Front (silver)		Appelez-nous	-
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
6	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
7	W10871196		Toe Panel (includes Item 6) (black)   (Replaces: 8573286)				$ 174.04
8	8269740		Clip, Grounding				$ 6.21
9	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
10	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
11	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80

    View Diagram in Separate Window       Print Part List
