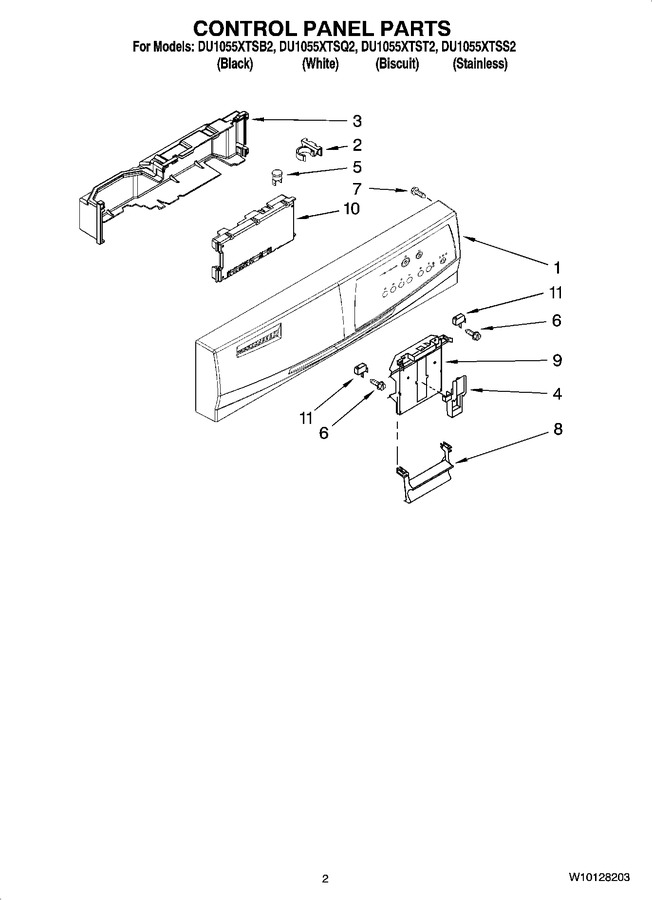

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10102848		Console Asm. (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	W10102849		Console Asm. (includes Active Overlay & Insert) (biscuit)		Appelez-nous	-
1	WPW10021710		Console Asm. (includes Active Overlay & Insert) (black)   (Replaces: W10102847)				$ 396.81
2	8546546		Clip, Bi-metal				$ 7.82
3	W10056090		Cover Control Shield Assembly		Appelez-nous	-
4	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
5	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
6	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
7	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 8.20
8	8534986		Handle, Latch (biscuit)				$ 89.73
8	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 131.06
8	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13
9	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
10	WPW10084141		Control, Electronic   (Replaces: 8575277)			Immediately	$ 313.68
11	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30
