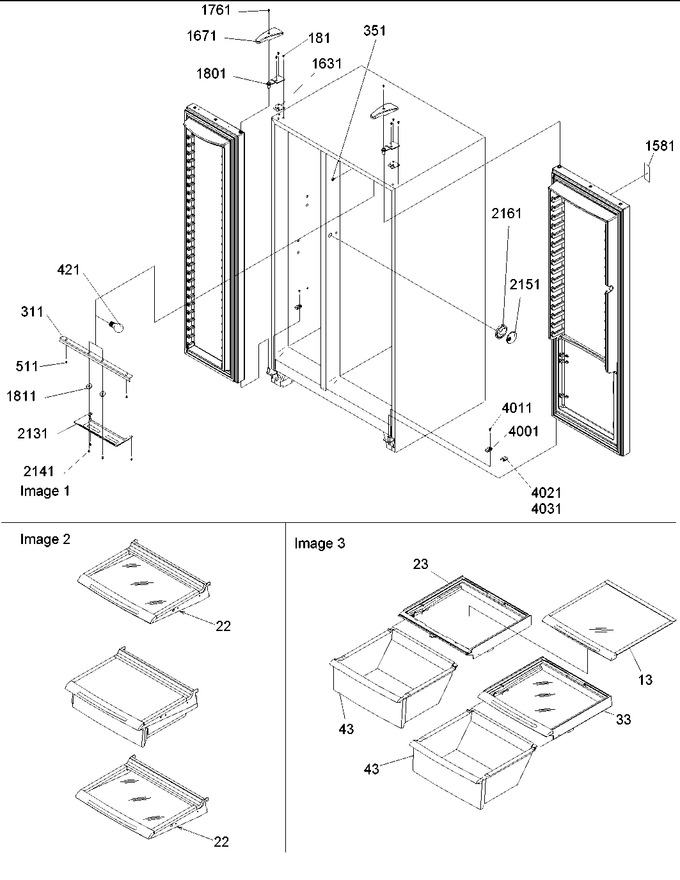

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10783110		Shelf-top Crisper		Appelez-nous	-
22	10809610		Shelf, Full Stationary		Appelez-nous	-
23	10882815Q		Assy, Crisper Frame		Appelez-nous	-
33	10882816Q		Assy, Crisp Frame		Appelez-nous	-
43	10783201		Pan,crisper		Appelez-nous	-
181	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
311	10014716		Shield, Light		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	W10887190		Bulb, Light (60 Watt)   (Replaces: A0282807)			Immediately	$ 19.23
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
1581	Y12528501		Nameplate (amana Plus)			Immediately	$ 62.74
1631	12428101		Shim, Top Hinge		Appelez-nous	-
1671	10849401		Cover W Hinge		Appelez-nous	-
1761	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.55
1801	12426201		Hinge, Top (e-ct)		Appelez-nous	-
1811	M0270508		Washer		Appelez-nous	-
2131	10493302		Cover, Frz Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2151	10164813		Grille, Control		Appelez-nous	-
2161	10164701		Control-air		Appelez-nous	-
4001	R0181181		Closure, Door (wht)   (Replaces: 12431301)			Immediately	$ 7.55
4011	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
4021	10361805		Shim, Dr Closure (wht)		Appelez-nous	-
4031	10361803		Shim, Dr Bushing				$ 5.51
