SELECT A DIAGRAM

01 - Cover Sheet

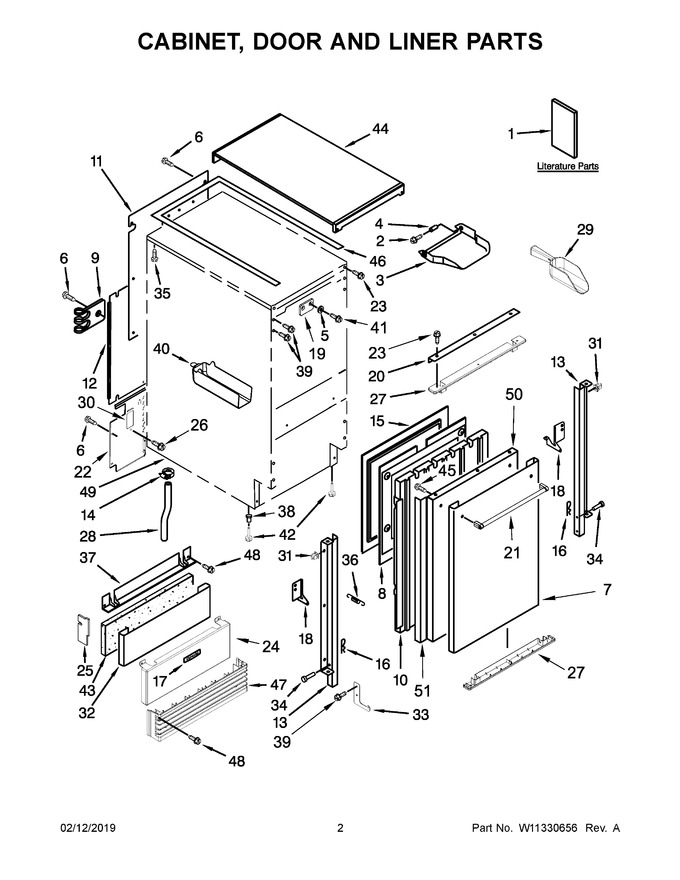

02 - Cabinet, Door And Liner Parts


03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11246207		Use & Care Guide		Appelez-nous	-
2	3400886		Screw (stainless)				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	3400916		Washer		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	W10711919		Panel, Door Wrap (stainless)				$ 289.13
8	W10515398		Panel, Interior				$ 364.55
9	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
10	W11325208		Insulation   (Replaces: W11024833)		Appelez-nous	-
11	W10218024		Ballast, Back		Appelez-nous	-
12	W10200006		Panel, Upper Back		Appelez-nous	-
13	2217466		Bracket, Door (left Hand)		Appelez-nous	-
14	W10670799		Clamp, Hose			Immediately	$ 24.87
15	W10136896		Gasket, Door (black)		Appelez-nous	-
16	W11545866		Clip   (Replaces: W10136142)				$ 11.88
17	W10909682		Nameplate (stainless)   (Replaces: W10518673)			Immediately	$ 76.20
18	2208425		Hinge (left Hand)		Appelez-nous	-
19	2208434		Strike, Magnet		Appelez-nous	-
20	W10129511		Trim, Magnet (black)		Appelez-nous	-
21	W10129457		Assembly, Handle		Appelez-nous	-
22	W11261936		Panel, Lower Assembly		Appelez-nous	-
23	8534081		Screw (stainless)				$ 7.81
24	2208594S		Panel, Lower (stainless)				$ 243.24
25	2217225		Pad, Foam		Appelez-nous	-
26	WP90767		Screw (stainless)   (Replaces: 8281192)			Immediately	$ 8.25
27	W10129509		Endcap, Door (black)		Appelez-nous	-
28	W10737551		Tube, Drain				$ 74.12
29	W10508276A		Scoop   (Replaces: W10508276)		Appelez-nous	-
30	W11318234		Cover, Drain Pump   (Replaces: W10129515)		Appelez-nous	-
31	WP692400		Screw Grommet   (Replaces: 692400)			Immediately	$ 8.02
32	2208382S		Panel, Wrap Lower (stainless)		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw   (Replaces: 489048)				$ 8.78
36	WP2208570		Spring, Hinge   (Replaces: W10191920)				$ 23.79
37	W11109024		Endcap, Lower Panel		Appelez-nous	-
38	8534070		Nut, Leg Leveler		Appelez-nous	-
39	WP488163		Screw   (Replaces: 488208)				$ 7.92
40	W10557773		Holder, Scoop		Appelez-nous	-
41	8281191		Screw				$ 6.77
42	W10516124		Leveler, Leg		Appelez-nous	-
43	2208384		Insulation, Lower Panel		Appelez-nous	-
44	W10514165		Panel, Top		Appelez-nous	-
45	WP3400237		Screw   (Replaces: 3400237)				$ 8.11
46	2217296		Gasket, Top Panel		Appelez-nous	-
47	WP2217206B		Grill, Front   (Replaces: W11109008)				$ 116.28
48	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
49	N/P		Cabinet & Liner (not Serviced)		Appelez-nous	-
50	2208352B		Panel, Door (black)		Appelez-nous	-
51	2208595B		Grommet, Edge Guard (black)		Appelez-nous	-
13A	2217465		Bracket, Door (right Hand)		Appelez-nous	-
18A	2208426		Hinge (right Hand)		Appelez-nous	-
1A	W11255279		Installation Instructions		Appelez-nous	-
1B	W10761657		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
