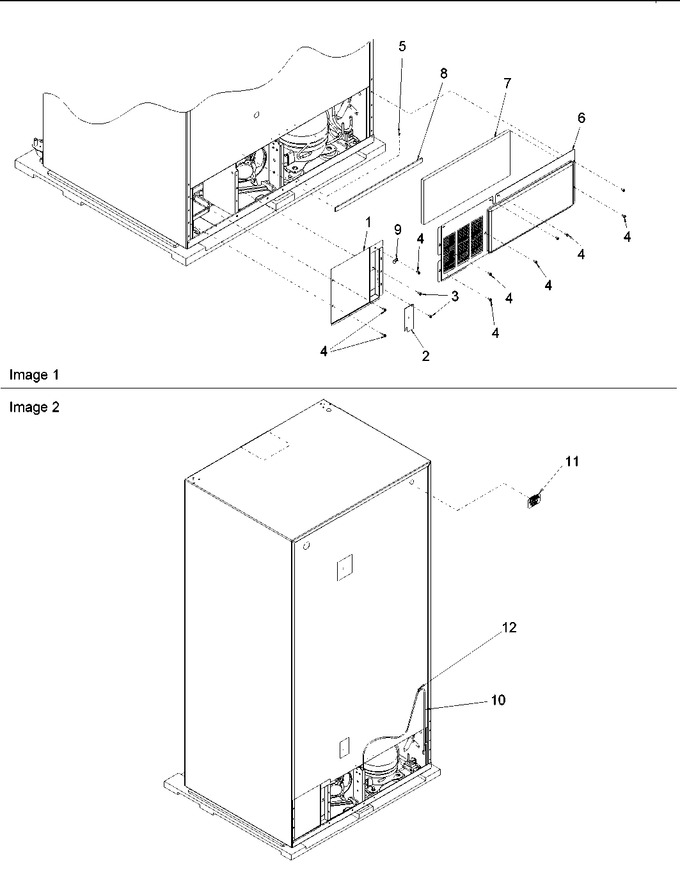

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12479803		Cover, Water Valve		Appelez-nous	-
2	12479901		Plate, Cover		Appelez-nous	-
3	681390		Screw   (Replaces: M0251015)				$ 13.71
4	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
5	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
6	12575101ED		Back, Mach Comp		Appelez-nous	-
7	B0523599		Insulation, Mc Back		Appelez-nous	-
8	B5759649		Gasket, Mc Back		Appelez-nous	-
9	M0108001		Clamp, Tube		Appelez-nous	-
10	WP67006506		Cord, Power   (Replaces: 12583301)				$ 27.74
11	10544301		Plug, Im Tunnel		Appelez-nous	-
12	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
NI	M0221523		Screw, Shldr		Appelez-nous	-
