01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts

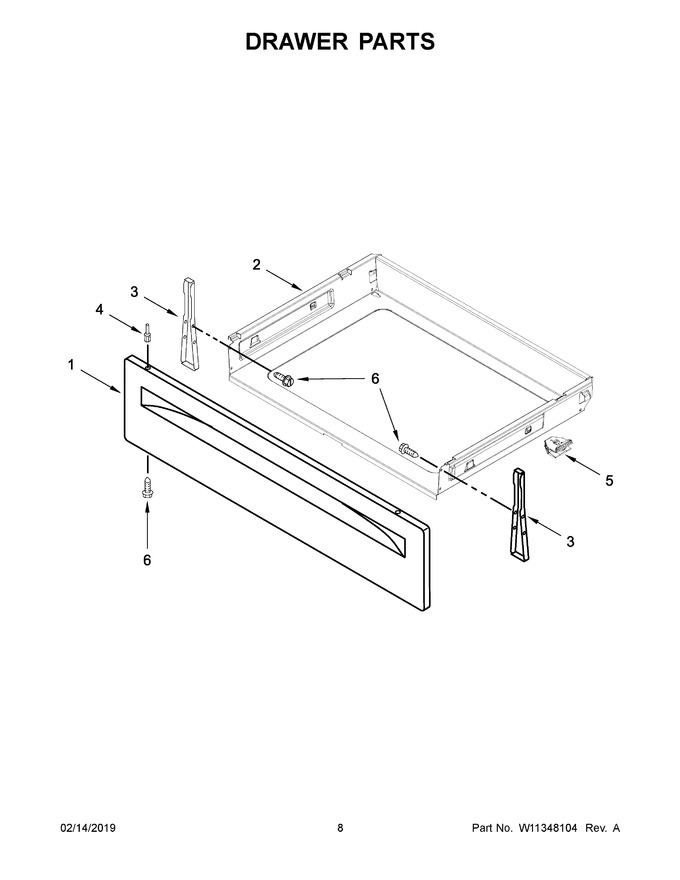

05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11230490 | Panel, Front (black) (Replaces: 8053338) |
|
$ 211.59 | |||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 3 | W10462911 | Bracket, Mounting |
|
- | |||||
| 4 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 5 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 19.47 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 1A | W11230486 | Panel, Front (white) (Replaces: 8053336) |
|
$ 211.49 | |||||
| 4A | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 |
