SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

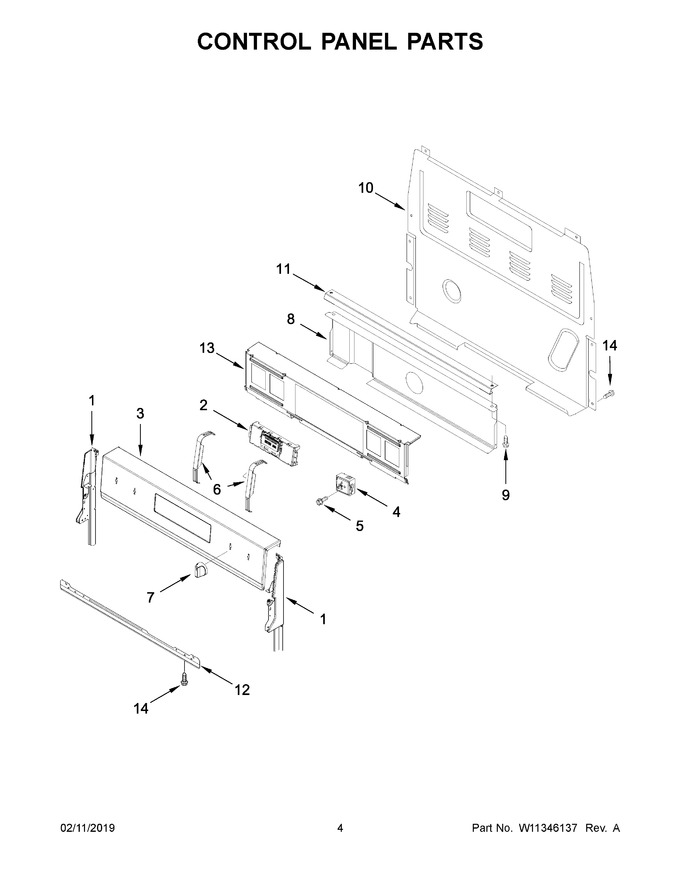

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	W11528249		Control, Electronic (lcx) (black)   (Replaces: W11204529)			Immediately	$ 292.04
3	W11184720		Console, Assembly (stainless)   (Replaces: W11089993)				$ 504.93
4	WPW10434452		Switch, Infinite (dual) (left Front And Right Front)   (Replaces: W10434452)			Immediately	$ 140.84
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W10856361		Bracket, Control		Appelez-nous	-
7	W11158168		Knob (stainless)   (Replaces: W11022717)			Immediately	$ 81.39
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 222.43
13	W10901802		Panel, Backer				$ 96.79
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
1A	W11213292		Endcap (black (right))				$ 71.65
3A	W11184721		Console, Assembly (black Stainless)   (Replaces: W11089994)				$ 358.60
4A	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
7A	W11158187		Knob (black Stainless)   (Replaces: W11027166)			Immediately	$ 81.83

    View Diagram in Separate Window       Print Part List
