| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67004938 |
 |
Assy, Waterline (Replaces: 12615503) |
10 |
|
|
$ 139.23 |
|
|
| 2 |
W10833902 |
|
Clamp, Tube (Replaces: M0108105) |
10 |
|
|
$ 11.54 |
|
|
| 3 |
M0104102 |
 |
Clip, Cord |
10 |
|
|
$ 8.10 |
|
|
| 4 |
12665101 |
|
Seal, Ice Chute |
10 |
|
|
$ 5.84 |
|
|
| 5 |
12563401 |
|
Insul, Chute Doorxx |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
12562701 |
|
Door, Ice Chute |
10 |
|
|
$ 5.84 |
|
|
| 7 |
12563201 |
|
Hinge, Ice Chute |
10 |
Appelez-nous
|
- |
|
|
|
| 8 |
WP12565502 |
 |
Spring, Chute Dr (Replaces: 12565502) |
10 |
|
|
$ 8.43 |
|
|
| 9 |
12663301 |
|
Extension, Ice Chute |
10 |
Appelez-nous
|
- |
|
|
|
| 9 |
67006425 |
 |
Screw, Sm (Replaces: M0238642) |
10 |
|
Immediately |
$ 7.30 |
|
|
| 10 |
67002816 |
|
Clip, Waterline |
10 |
|
|
$ 19.15 |
|
|
| 11 |
W10857122 |
 |
Bulb, Light (Replaces: 67001316) |
10 |
|
|
$ 14.52 |
|
|
| 12 |
12617501 |
|
Socket, Light |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
12575401 |
|
Solenoid |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
WP488234 |
 |
Screw, Mach (Replaces: M0200314) |
10 |
|
|
$ 7.08 |
|
|
| 14 |
67003202 |
|
Insert, Facade (blk) |
|
Appelez-nous
|
- |
|
|
|
| 15 |
67002775 |
|
Facade, Dba |
|
Appelez-nous
|
- |
|
|
|
| 16 |
12596102B |
|
Tray,sump(black) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
12596201B |
|
Grille,sump(black) |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
67002382 |
|
Grille, Sump (blk) |
|
|
|
$ 27.70 |
|
|
| 18 |
67006425 |
|
Screw, Sm (Replaces: M0238616) |
10 |
|
Immediately |
$ 7.30 |
|
|
| 19 |
2006254 |
|
Screw,hi/lo (Replaces: M0237902) |
10 |
|
|
$ 13.79 |
|
|
| 19 |
12550401 |
|
Board,control |
10 |
Appelez-nous
|
- |
|
|
|
| 20 |
67003203 |
|
Label |
10 |
Appelez-nous
|
- |
|
|
|
| NI |
WP12575501 |
 |
Switch, Limit (Replaces: 12575501) |
|
|
|
$ 72.35 |
|
|
| NI |
12598902B |
|
Actr Pad Frame Assy. (blk) |
|
|
|
$ 35.81 |
|
|

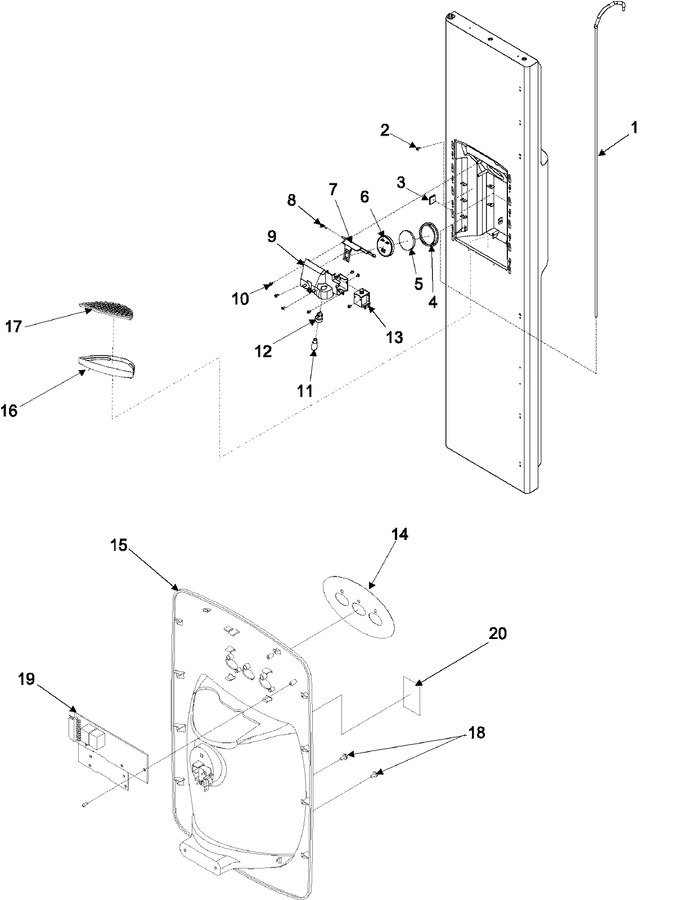

View Diagram in Separate Window
Print Part List
