SELECT A DIAGRAM

Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

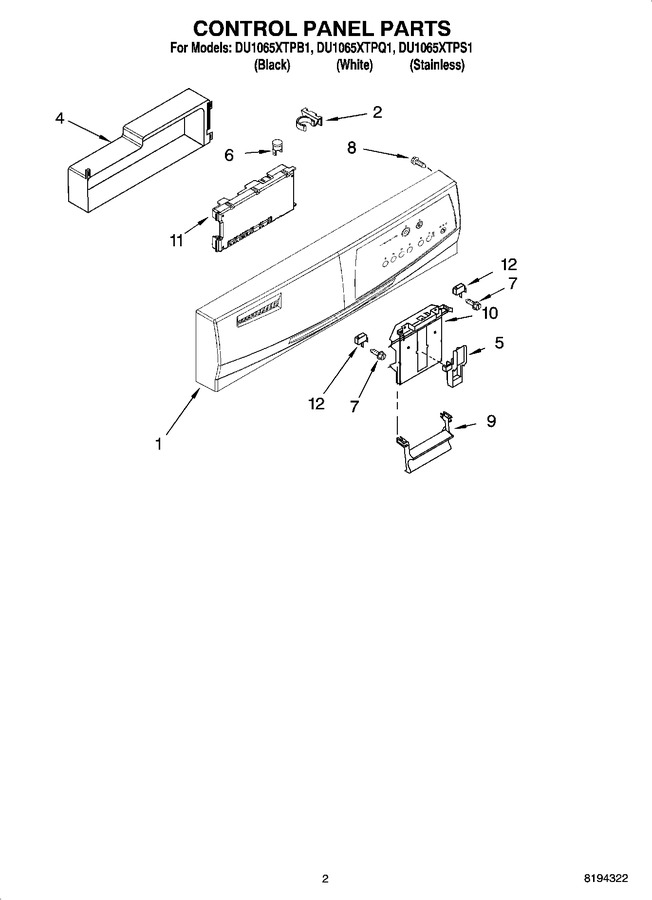

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Lower Washarm Parts
04 - Lower Washarm Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Upper Wash And Rinse Parts
10 - Upper Wash And Rinse Parts

Diagram for 11 - Lower Rack Parts, Optional Parts (not Included)
11 - Lower Rack Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8575955 Console Asm. (includes Active Overlay & Insert) (white) Appelez-nous -
1 8575952 Console Asm. (includes Active Overlay & Insert) (black) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

4 8558247 Cover Control Shield Assembly Appelez-nous -
5 WP8524472 Actuator, Latch   (Replaces: 8524472) Special Order $ 111.29

6 W10258275 Fuse, Thermal Electronic   (Replaces: 661663) In-Stock Immediately $ 41.71

7 WP3400412 Screw   (Replaces: 3400412) In-Stock Immediately $ 7.94

8 WPW10348409 Screw (6)   (Replaces: 3369051) In-Stock Immediately $ 8.20

9 WP8534985 Handle, Latch (white)   (Replaces: 8534985) Special Order $ 127.13

9 WP8534984 Handle, Latch (black)   (Replaces: 8534984) Special Order $ 131.06

10 8193882 Bolt, Latch   (Replaces: 8524476) In-Stock Immediately $ 114.47

11 WPW10084141 Control, Electronic   (Replaces: 8562997) In-Stock Immediately $ 313.68

12 WP8269209 Switch, Door   (Replaces: 8269209) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for DU1065XTPB1
