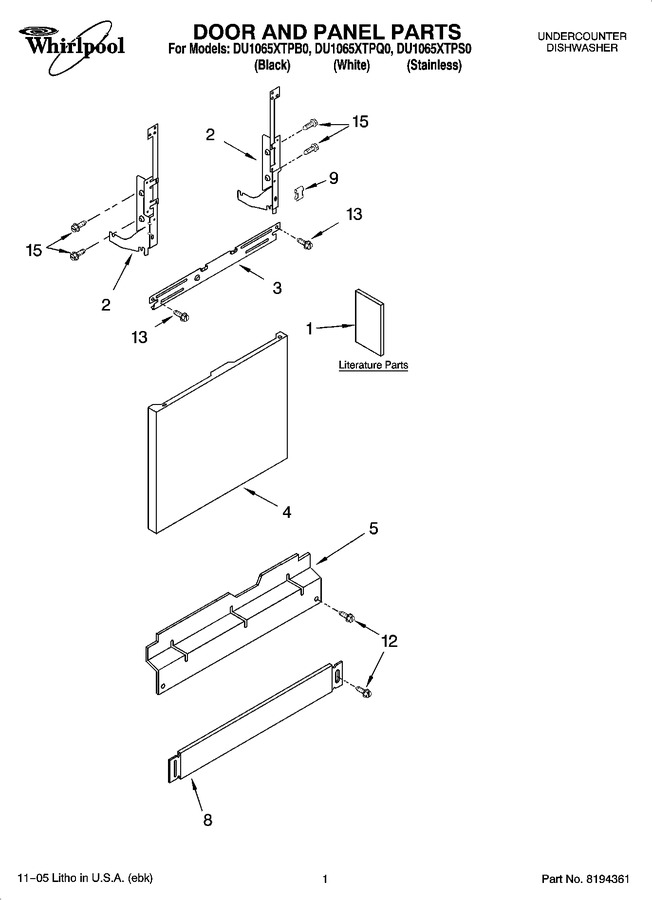

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8572876		Energy Guide		Appelez-nous	-
1	8573158		Instructions, Installation		Appelez-nous	-
1	8535541		Guide, Use & Care Tech Sheet		Appelez-nous	-
1	8535451		English/french		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: 8534857)			Immediately	$ 83.93
2	W11806566		Arm, Hinge (left)   (Replaces: 8534858)			Immediately	$ 71.77
3	8268983		Stiffener, Door				$ 38.77
4	8528840		Panel Front (stainless)		Appelez-nous	-
4	8269838		Panel Front (white)		Appelez-nous	-
4	8269837		Panel Front (black)				$ 119.99
5	W11763736		Access Panel (black)   (Replaces: 8543834)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8543835)				$ 170.94
8	W10871196		Toe Panel (black)   (Replaces: 8268999)				$ 174.04
8	WPW10586591		Toe Panel (white)   (Replaces: 8269000)				$ 309.39
9	8269740		Clip, Grounding				$ 6.21
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
13	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
15	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
