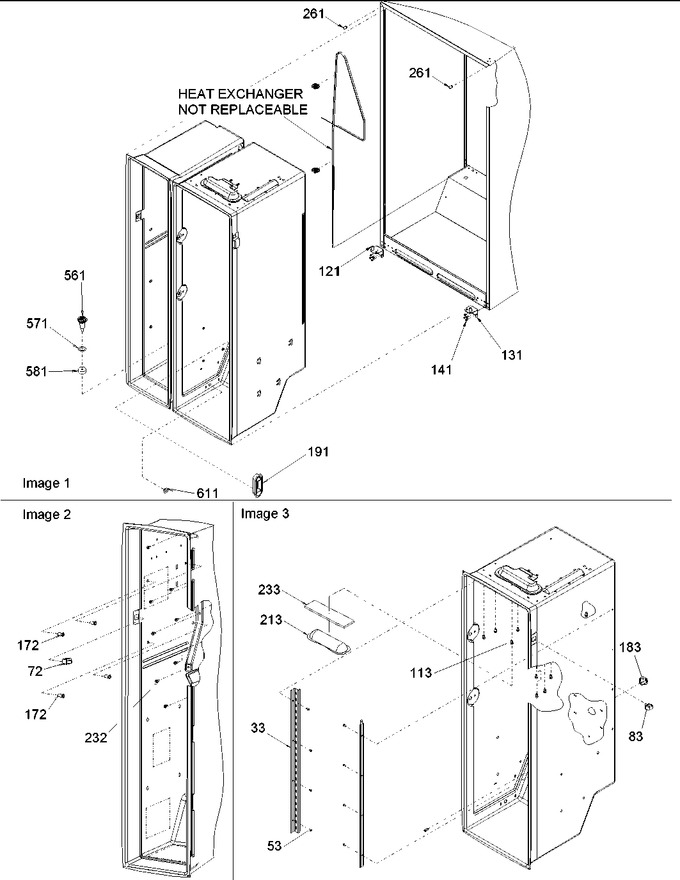

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	12614211		Ladder, Powder Ct		Appelez-nous	-
53	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
72	W11396033		Switch, Light   (Replaces: 12466103)			Immediately	$ 37.30
83	W11291138		Switch, Ref Light   (Replaces: 12466104)			Immediately	$ 36.67
113	M0580007		Grommet, Screw		Appelez-nous	-
121	12570905WD		Hinge, Bottom (lt-wht)		Appelez-nous	-
131	12570906WD		Hinge, Bottom (rt-wht)		Appelez-nous	-
141	WP67006715		Screw, Sm   (Replaces: M0241608)				$ 7.19
172	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
183	W11447232		Socket, Light   (Replaces: Y12570701)			Immediately	$ 13.21
191	12634801		Grille, Return Air		Appelez-nous	-
213	12570003		Housing, Light		Appelez-nous	-
232	M0581003		Grommet, Screw		Appelez-nous	-
233	12664701		Insulation, Lt Housing		Appelez-nous	-
261	67003484		Cover, Corner (wht)   (Replaces: 12587702W)				$ 20.40
561	12456901		Funnel, Drain		Appelez-nous	-
571	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.92
581	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.41
611	12567102		Plug, Air Tunnel		Appelez-nous	-
