Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 76660 Siphon Break Kit (comment: Siphon Break Kit Must Be Installed In Drain Hose If Drain Receptacle Is Lower Than Cabinet Top Of Washer)   (Replaces: 562P3) In-Stock Immediately $ 133.25

2 33615 Drain Hose Sleeve Special Order $ 8.35

3 33489 Standpipe Strap Appelez-nous -
4 39864 Drain Hose Special Order $ 54.13

5 38732 Hose Stand Special Order $ 2.42

6 39255P Drain Pump Special Order $ 168.00

7 38068 Pump Wire Harness Assembly Appelez-nous -
8 38789 Pump Bracket Appelez-nous -
9 DE81-03735A Screw (comment: Metric)   (Replaces: 38096) Special Order $ 200.86

10 D503661 Screw Appelez-nous -
11 38095 Pump Isolator Appelez-nous -
12 38768 Pump Shield Appelez-nous -
13 WP285655 Hose Clamp   (Replaces: 20391) In-Stock Immediately $ 8.39

14 36014 Retainer Clip Special Order $ 7.72

15 38759 Tub-to-pump Hose Appelez-nous -
16 F200204 Hose Clamp Special Order $ 5.66

17 32219 Strain Relief Special Order $ 7.72


    View Diagram in Separate Window     Print Icon   Print Part List

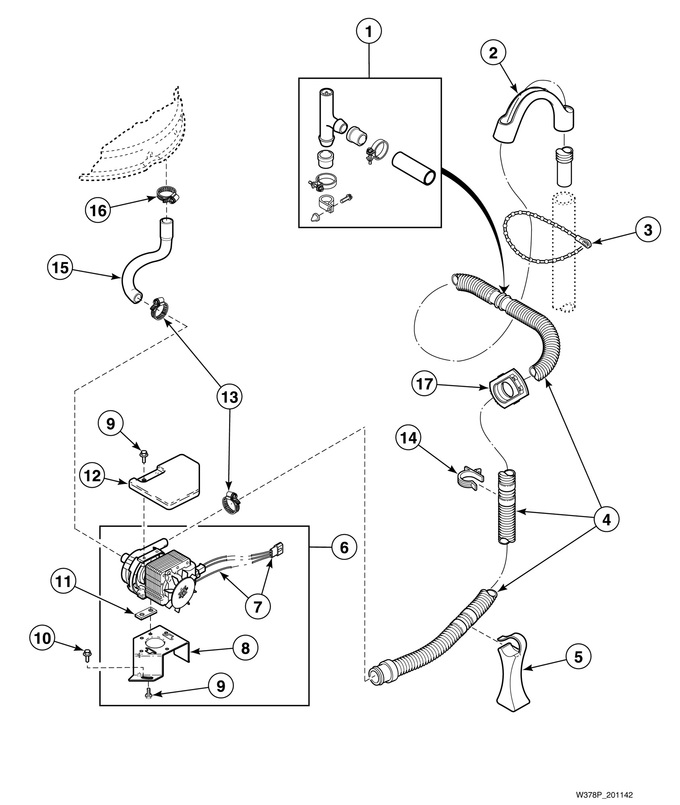

Diagram for LWK24A*-3050
