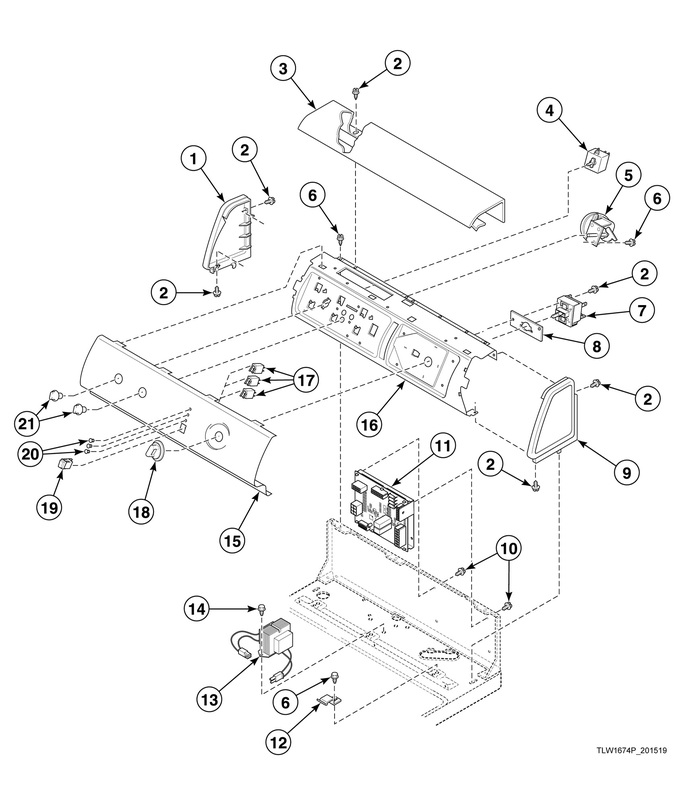

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D504009WP		End Panel (comment: Left)			Immediately	$ 24.67
2	D501086		Screw			Immediately	$ 7.72
3	39905W		Top Cover				$ 54.32
4	35115		Temperature Switch				$ 34.08
5	201609P		Pressure Switch				$ 152.38
6	WP90767		Screw   (Replaces: 23962)			Immediately	$ 8.25
7	801240		Cycle Switch			Immediately	$ 63.37
8	801390		Cycle Switch Bracket		Appelez-nous	-
9	D504008WP		End Panel (comment: Right)				$ 21.37
10	D501524		Screw		Appelez-nous	-
11	202320P		Control Assembly		Appelez-nous	-
12	35358		Hold-down Clip				$ 7.72
13	201587P		Transformer				$ 50.71
14	D503661		Screw		Appelez-nous	-
15	202440W		Control Panel		Appelez-nous	-
16	38171		Control Support Panel				$ 46.87
17	801356		Indicator Light		Appelez-nous	-
18	803168P		Knob Assembly			Immediately	$ 10.76
19	801434W		Push-to-start Switch			Immediately	$ 25.18
20	801435		Indicator Light Lens				$ 7.72
21	803119P		Control Knob Assembly			Immediately	$ 12.46
