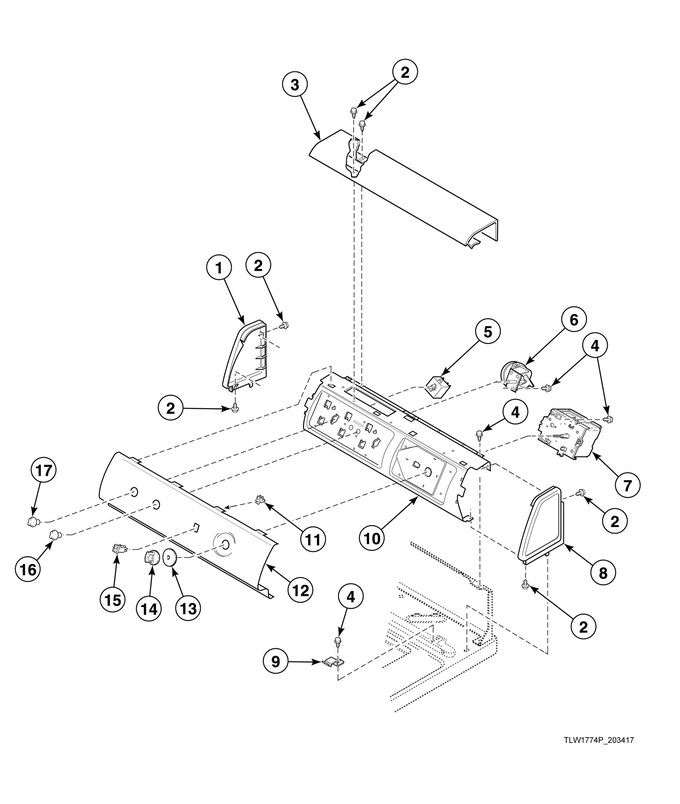

Graphic Panel, Control Support Panel And Controls (drawing 1 of 3)


Lead-in Cord And Terminals


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals And extractor Tool


Motor, Mounting Bracket, Belt, Pump And Idler Assembly


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight


Shipping Brace, Plug And Special Tools


Special Tools


Terminals


Top, Lid And Hood Back Panel


Transmission Assembly


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D504009WP		End Panel (comment: Left)			Immediately	$ 24.67
2	D501086		Screw			Immediately	$ 7.72
3	39905W		Top Cover				$ 54.32
4	WP90767		Screw   (Replaces: 23962)			Immediately	$ 8.25
5	35115		Temperature Switch (comment: 3 Position)				$ 34.08
6	202937		Pressure Switch			Immediately	$ 167.21
7	202705P		Timer (comment: Models Starting Serial Nos. Beginning With 1501)				$ 204.46
8	D504008WP		End Panel (comment: Right)				$ 21.37
9	35358		Hold-down Clip				$ 7.72
10	38565		Control Support Panel				$ 24.70
11	00161		Grounding Clip				$ 11.35
12	203606W		Graphic Panel		Appelez-nous	-
13	803116		Timer Skirt Assembly				$ 10.20
14	202133		Timer Knob Assembly			Immediately	$ 32.32
15	38424W		Rocker Switch				$ 9.70
16	803118P		Knob Assembly			Immediately	$ 8.95
17	803119P		Control Knob Assembly			Immediately	$ 12.46

    View Diagram in Separate Window       Print Part List
