SELECT A DIAGRAM

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and lip seal kit and washtub


Drain Hose And Siphon Break Kit


Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing valve and bracket


Front Panel, Base Assembly And Cabinet Kit


Graphic Panel, Control Support Panel And Controls (drawing 3 of 3)


Junction Box


Lead-in Cord And Terminals


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals And extractor Tool


Motor, Mounting Bracket, Belt, Pump And Idler Assembly


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight


Output Board, Wire Harnesses And Wires


Shipping Brace, Plug And Special Tools


Special Tools


Terminals


Top, Lid And Hood Back Panel


Transmission Assembly


Weldment And Bearing Assembly, Brake And Pulley

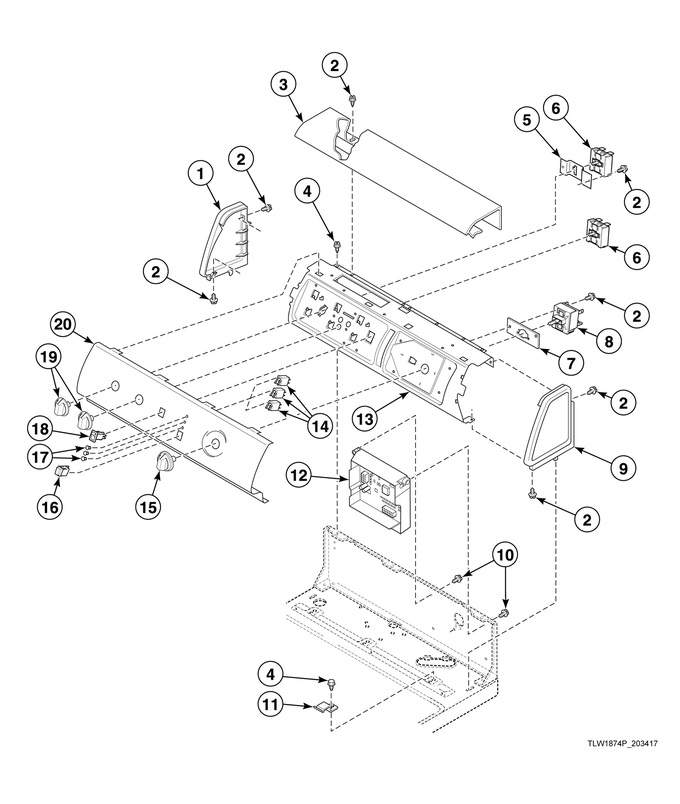

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D504009WP		End Panel (comment: Left)			Immediately	$ 24.67
2	D501086		Screw			Immediately	$ 7.72
3	39905W		Top Cover				$ 54.32
4	WP90767		Screw   (Replaces: 23962)			Immediately	$ 8.25
5	203483		Bracket		Appelez-nous	-
6	35115		Temperature Switch (comment: 3 Position)				$ 34.08
7	801390		Cycle Switch Bracket		Appelez-nous	-
8	801240		Cycle Switch			Immediately	$ 63.37
9	D504008WP		End Panel (comment: Right)				$ 21.37
10	804608		Screw				$ 0.54
11	35358		Hold-down Clip				$ 7.72
12	202792P		Control Assembly   (Replaces: 202792)				$ 528.11
13	38565		Control Support Panel				$ 24.70
14	801356		Indicator Light		Appelez-nous	-
15	D512117W		Timer Knob Assembly			Immediately	$ 8.95
16	801434W		Push-to-start Switch			Immediately	$ 25.18
17	801435		Indicator Light Lens				$ 7.72
18	-		Not On Your Model		Appelez-nous	-
19	WP36701W		Knob Assembly   (Replaces: 36701W)			Immediately	$ 51.69
20	204341W		Graphic Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
