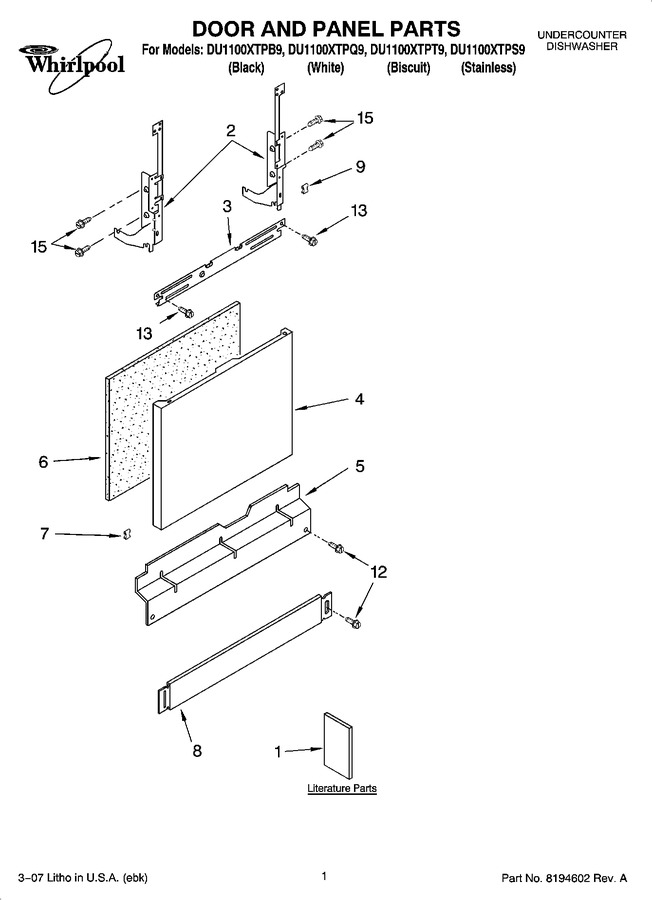

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10073760 | Guide, Use & Care |
|
- | |||||
| 1 | W10082651 | Tech Sheet |
|
- | |||||
| 1 | 8575348 | Instructions, Installation |
|
- | |||||
| 1 | W10066180 | Energy Guide |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: 8534858) |
|
Immediately | $ 71.77 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: 8534857) |
|
Immediately | $ 83.93 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10301577 | Panel Front (includes 7) (stainless) (Replaces: 8269845) |
|
$ 399.50 | |||||
| 4 | W10301571 | Panel Front (includes 7) (black) (Replaces: W10073200) |
|
$ 398.59 | |||||
| 4 | W10073210 | Panel Front (includes 7) (white) |
|
- | |||||
| 4 | W10384707 | Panel Front (includes 7) (biscuit) (Replaces: W10073220) |
|
$ 337.88 | |||||
| 5 | W10871198 | Access Panel (biscuit) (Replaces: 8573257) |
|
$ 161.50 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 42.25 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: 8573256) |
|
$ 170.94 | |||||
| 6 | WPW10073520 | Insulation, Door (Replaces: 8268580) |
|
$ 96.23 | |||||
| 7 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 | |||||
| 8 | 8573288 | Toe Panel (includes Clip) (biscuit) |
|
$ 67.15 | |||||
| 8 | WP8573287 | Toe Panel (includes Clip) (white) (Replaces: 8573287) |
|
$ 177.69 | |||||
| 8 | W10871196 | Toe Panel (includes Clip) (black) (Replaces: 8573286) |
|
$ 174.04 | |||||
| 9 | 8269740 | Clip, Grounding |
|
$ 6.21 | |||||
| 12 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 8.10 | |||||
| 12 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 12 | 3400865 | Screw (biscuit) |
|
$ 14.07 | |||||
| 13 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 |
