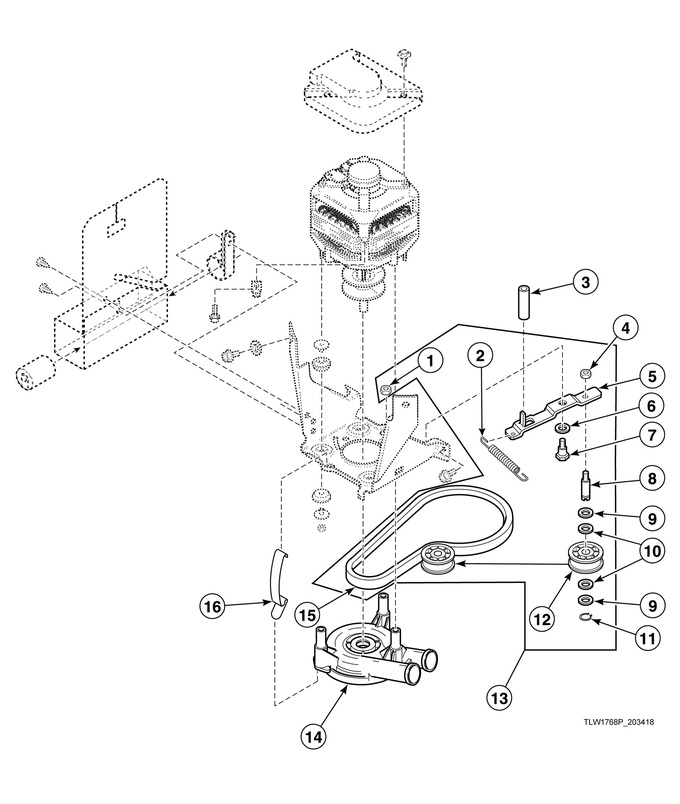

Belt, Pump And Idler Assembly (drawing 1 Of 2)


Controls And Overlay


Drain Hose And Siphon Break Kit


Fill Hose


Front Panel, Base Assembly And Cabinet Kit


Graphic Panel And Control Support Panel


Junction Box


Lid And Hood Back Panel


Lid Switch Assembly


Mixing Valve


Mixing Valve And Motor Connection Blocks, Terminals and extractor tool


Mixing Valve-to-tub Cover Hose And Mixing Valve Bracket


Motor And Mounting Bracket


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight


Output Board, Wire Harnesses And Wires


Power Cord


Shipping Materials And Special Tools


Special Tools


Terminals


Terminals And Clips


Top


Transmission Assembly (drawing 1 Of 2)


Weldment And Bearing Assembly, Brake And Pulley


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10139757		Nut   (Replaces: 52566)				$ 7.96
2	201189		Idler Lever Spring				$ 6.87
3	-		Not On Your Model		Appelez-nous	-
4	56156		Nut   (Replaces: 28803)				$ 7.72
5	38011		Idler Lever			Immediately	$ 7.72
6	81392		Washer			Immediately	$ 7.72
7	27229		Screw			Immediately	$ 7.72
8	WP489128		Idler Shaft   (Replaces: 210186)				$ 10.88
9	D504082		Washer			Immediately	$ 4.70
10	WP233520		Washer (comment: Nylatron)   (Replaces: 52549)			Immediately	$ 7.96
11	WP23748		Retaining Ring   (Replaces: 23748)			Immediately	$ 11.94
12	205552P		Idler Pulley   (Replaces: 38225P)			Immediately	$ 21.49
13	202972		Idler Lever And Belt Kit (comment: Includes Items 1, 2, 4-12 And 15)				$ 110.88
14	205217P		Pump   (Replaces: 201566P)			Immediately	$ 61.15
14	205218P		Pump Assembly (comment: Heavy Duty)   (Replaces: 201442P)			Immediately	$ 204.23
15	200923		Agitate And Spin Belt			Immediately	$ 45.84
16	210202		Spring Clip			Immediately	$ 7.72
NA	202378		Idler Lever Assembly (comment: Includes Items 3-5 And 8-12)				$ 80.23
