SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, & Crisper Assy


04 - Drain, Rollers & Evap Assy


05 - Evaporator Fan Motor Assembly


06 - Façade Dispenser, & Elect Brkt Assy


07 - Freezer Door


08 - Freezer Shelves & Lights


09 - Ice Bucket Auger & Ice Maker Parts


10 - Ice Maker/control Assy


11 - Lights, Hinges & Shelving


12 - Machine Compartment


13 - Refrigerator Door, Trim & Handles


14 - Water Filter Assy

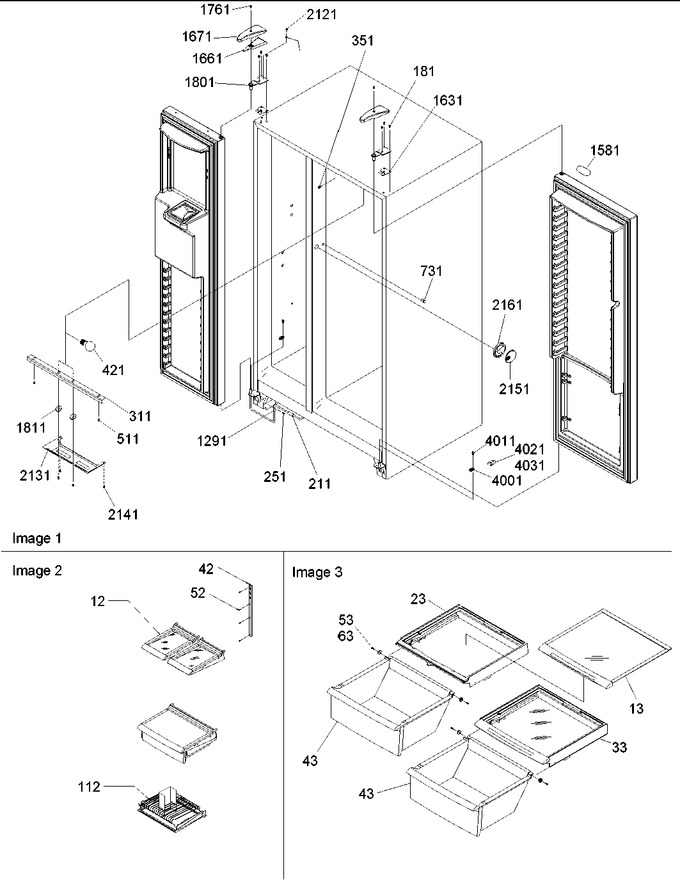

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10883331Q		Assy,split Glide Shlf		Appelez-nous	-
13	10783124		Shelf, Top Crisper		Appelez-nous	-
23	10882801Q		Assy, Crisper Frame		Appelez-nous	-
33	10882821Q		Assy,crisper Frame		Appelez-nous	-
42	12373101		Ladder, Center		Appelez-nous	-
43	10783201		Pan,crisper		Appelez-nous	-
52	M0238636		Screw-sm		Appelez-nous	-
53	10481001		Roller, Pan				$ 10.99
63	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.28
112	12224205Q		Assy, Can Rack		Appelez-nous	-
181	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.38
211	WP4373559		Union K   (Replaces: B5706901)				$ 77.35
251	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
311	10014716		Shield, Light		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	W10887190		Bulb, Light (60 Watt)   (Replaces: A0282807)			Immediately	$ 18.31
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
731	10426801		Clip, Air Tunnel		Appelez-nous	-
1291	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
1581	Y12528501		Nameplate (amana Plus)			Immediately	$ 59.75
1631	12428101		Shim, Top Hinge		Appelez-nous	-
1661	10863501		Foil, Hng Cov		Appelez-nous	-
1671	10849406		Cover W Hinge		Appelez-nous	-
1761	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.19
1801	12426201		Hinge, Top (e-ct)		Appelez-nous	-
1811	M0270508		Washer		Appelez-nous	-
2121	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.02
2131	10493302		Cover, Frz Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2151	10164815		Grille,control		Appelez-nous	-
2161	10164701		Control-air		Appelez-nous	-
4001	R0181181		Closure, Door (wht)   (Replaces: 12431301)			Immediately	$ 7.19
4011	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.44
4021	10361805		Shim, Dr Closure (wht)		Appelez-nous	-
4031	10361803		Shim, Dr Bushing				$ 5.51

    View Diagram in Separate Window       Print Part List
