| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
D505808W |
|
Top Cover (comment: White) |
|
|
|
$ 101.59 |
|
|
| 1 |
N/A |
|
Top Cover (comment: Almond) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
D505808Q |
|
Top Cover (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
D501086 |
|
Screw |
|
|
Immediately |
$ 7.72 |
|
|
| 3 |
687542 |
|
Temperature Switch |
|
|
|
$ 42.29 |
|
|
| 4 |
N/A |
|
Temperature Switch Bracket |
|
Appelez-nous
|
- |
|
|
|
| 5 |
687537P |
|
Timer |
|
|
|
$ 488.96 |
|
|
| 6 |
D504008QP |
|
End Panel (comment: Bisque; Right) |
|
|
Immediately |
$ 25.66 |
|
|
| 6 |
D504008L |
|
End Panel (comment: Almond; Right) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
D504008WP |
 |
End Panel (comment: White; Right) |
|
|
|
$ 21.37 |
|
|
| 7 |
800468P |
|
Pressure Switch |
|
|
|
$ 110.35 |
|
|
| 8 |
800076P |
|
Control Board Kit |
|
|
|
$ 2,447.40 |
|
|
| 9 |
F350138 |
|
Fuse (comment: 7 Amp; 1.25 X .25) |
|
|
|
$ 6.32 |
|
|
| 10 |
D501524 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 11 |
801388 |
|
Control Support Panel |
|
Appelez-nous
|
- |
|
|
|
| 12 |
800399 |
|
Indicator Light |
|
Appelez-nous
|
- |
|
|
|
| 13 |
687557 |
|
Graphic Panel |
|
Appelez-nous
|
- |
|
|
|
| 14 |
36700Q |
|
Timer Skirt Assembly (comment: Bisque) |
|
|
|
$ 14.60 |
|
|
| 14 |
N/A |
|
Timer Skirt Assembly (comment: Almond) |
|
Appelez-nous
|
- |
|
|
|
| 14 |
36700W |
|
Timer Skirt Assembly (comment: White) |
|
|
|
$ 11.93 |
|
|
| 15 |
201501Q |
|
Timer Knob (comment: Almond) |
|
|
|
$ 16.91 |
|
|
| 15 |
201501W |
 |
Timer Knob (comment: White) |
|
|
Immediately |
$ 18.36 |
|
|
| 16 |
00685579 |
 |
Indicator Light Lens (Replaces: 685579) |
|
|
Immediately |
$ 476.35 |
|
|
| 17 |
36701L |
|
Knob Assembly (comment: Almond) |
|
|
|
$ 14.80 |
|
|
| 17 |
36701Q |
|
Knob Assembly (comment: Bisque) |
|
|
|
$ 22.52 |
|
|
| 17 |
WP36701W |
 |
Knob Assembly (comment: White) (Replaces: 36701W) |
|
|
Immediately |
$ 49.23 |
|
|
| 18 |
N/A |
|
End Panel (comment: Almond; Left) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
D504009QP |
|
End Panel (comment: Bisque; Left) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
D504009WP |
 |
End Panel (comment: White; Left) |
|
|
Immediately |
$ 24.67 |
|
|

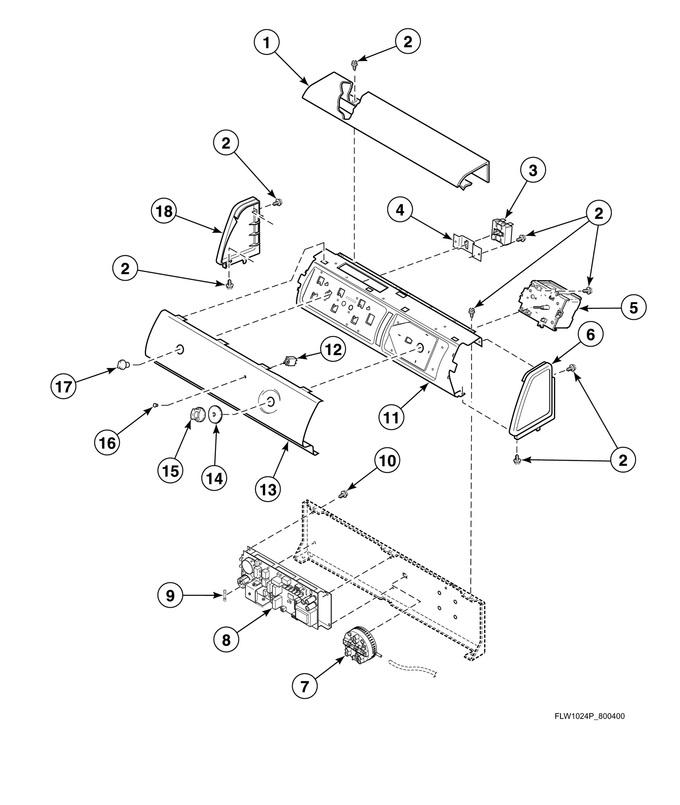

View Diagram in Separate Window
