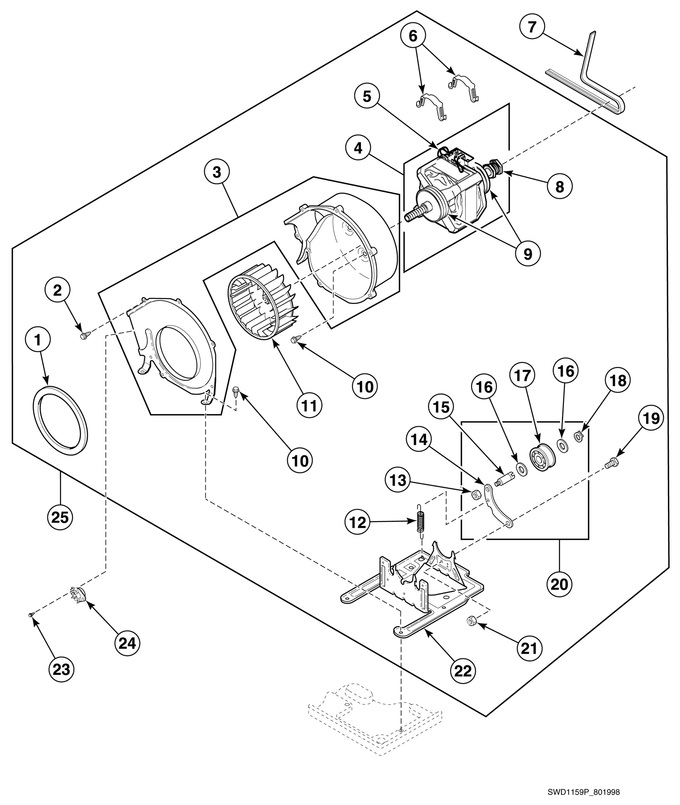

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510238P		Blower Housing Seal			Immediately	$ 9.37
2	31260		Screw				$ 2.98
3	D511969WP		Blower Housing				$ 68.34
4	D511629P		Motor And Pulley Assembly (comment: 120 Volt/60 Hertz; Includes Items 5, 8 And 9)			Immediately	$ 586.49
5	N/A		Motor Switch Kit (comment: Does Not Include Thermal Protector)		Appelez-nous	-
6	D510180		Motor Mount Clamp				$ 7.72
7	D511255P		Cylinder Belt			Immediately	$ 30.78
8	D500011		Motor Pulley			Immediately	$ 52.73
9	590P3		Motor Hub Ring Kit				$ 75.62
10	D503688		Screw			Immediately	$ 7.72
11	D510139P		Blower Fan Assembly			Immediately	$ 81.54
12	D510185		Idler Spring			Immediately	$ 3.28
13	56156		Nut				$ 7.72
14	D516310		Idler Lever   (Replaces: D510133)				$ 14.02
15	56461P		Shaft			Immediately	$ 9.37
16	WP233520		Washer   (Replaces: 52549)			Immediately	$ 7.96
17	D510142P		Idler Wheel And Bearing Assembly			Immediately	$ 17.68
18	WP23748		Retaining Ring   (Replaces: 23748)			Immediately	$ 11.94
19	D500824		Screw				$ 7.72
20	D516792		Idler Lever And Wheel Assembly (comment: Includes Items 13-18)   (Replaces: D510158)			Immediately	$ 50.20
21	WPW10139757		Nut   (Replaces: 52566)				$ 7.96
22	D518517		Motor Mount   (Replaces: D510060)				$ 34.05
23	WP3177991		Screw   (Replaces: 23222)			Immediately	$ 7.19
24	D510707P		Thermostat				$ 63.50
25	D510717P		Blower And Fan Kit (comment: Includes Items 1-6 And 8-22)				$ 899.70
