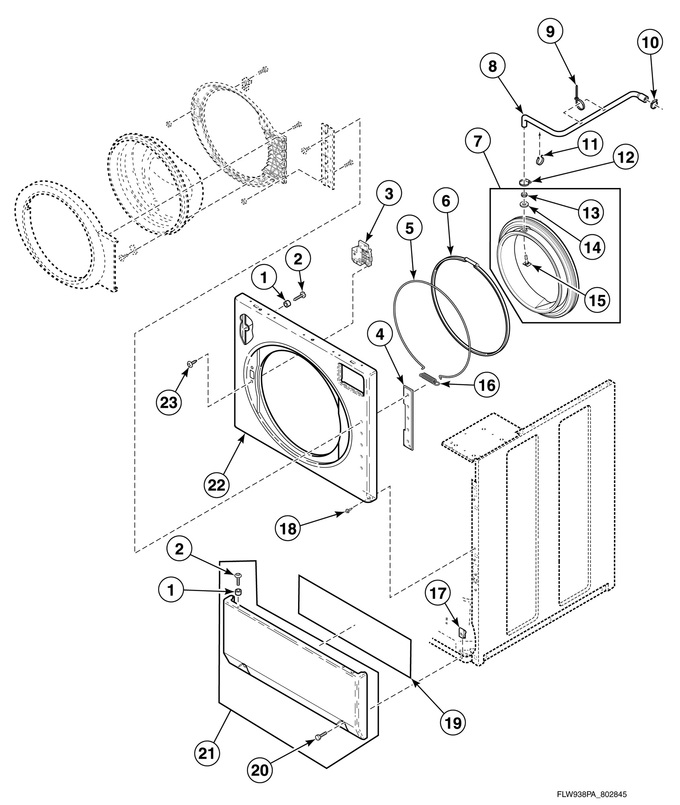

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
56079 |
 |
Panel Locator |
|
|
Immediately |
$ 7.72 |
|
|
| 2 |
D512921 |
|
Screw (comment: Use With Stainless Steel Panels) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
39733 |
|
Screw (comment: Use With Painted Panels) |
|
|
|
$ 7.72 |
|
|
| 3 |
802317P |
 |
Door Latch/switch Assembly |
|
|
Immediately |
$ 87.02 |
|
|
| 4 |
802206 |
|
Hinge Plate |
|
|
|
$ 29.34 |
|
|
| 5 |
806466 |
 |
Wire Clamp Ring (Replaces: 802283) |
|
|
Immediately |
$ 4.70 |
|
|
| 6 |
802281 |
|
Hose Clamp (comment: Seal To Outer Tub Front) |
|
|
|
$ 34.17 |
|
|
| 7 |
802830P |
 |
Door Seal Kit (comment: Gray; Optional; Includes Items 13-15) |
|
|
Immediately |
$ 318.52 |
|
|
| 7 |
802866P |
 |
Door Seal Assembly (comment: Black; Units Are Produced With Black; Includes Items 13-15) |
|
|
Immediately |
$ 437.40 |
|
|
| 8 |
802256 |
|
Dispenser-to-door Seal Hose |
|
|
|
$ 35.94 |
|
|
| 9 |
COMM PART |
|
Harness Strap (Replaces: 55881) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
802164 |
|
Hose Clamp |
|
|
|
$ 5.94 |
|
|
| 11 |
687500 |
|
Wire Clip |
|
Appelez-nous
|
- |
|
|
|
| 12 |
802698 |
|
Hose Clamp |
|
|
|
$ 13.16 |
|
|
| 13 |
802292 |
|
Nut |
|
Appelez-nous
|
- |
|
|
|
| 14 |
802293 |
|
Washer |
|
Appelez-nous
|
- |
|
|
|
| 15 |
802291 |
|
Boot Nozzle |
|
|
|
$ 9.67 |
|
|
| 16 |
806466 |
|
Extension Spring (Replaces: 802285) |
|
|
Immediately |
$ 4.70 |
|
|
| 17 |
36020 |
 |
Nut |
|
|
Immediately |
$ 7.72 |
|
|
| 18 |
D503661 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 19 |
204552 |
|
Front Panel Pad (comment: 1 Inch By 26 Inches) (Replaces: 36204) |
|
|
|
$ 1.98 |
|
|
| 20 |
801045 |
 |
Screw |
|
|
|
$ 4.70 |
|
|
| 21 |
D514250WP |
|
Access Panel Assembly (comment: White) |
|
|
Immediately |
$ 98.34 |
|
|
| 21 |
D514250Q |
|
Access Panel Assembly (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
802277QP |
|
Front Panel (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
802277WP |
 |
Front Panel (comment: White) |
|
|
|
$ 231.99 |
|
|
| 23 |
800548 |
 |
Screw |
|
|
Immediately |
$ 4.31 |
|
|
