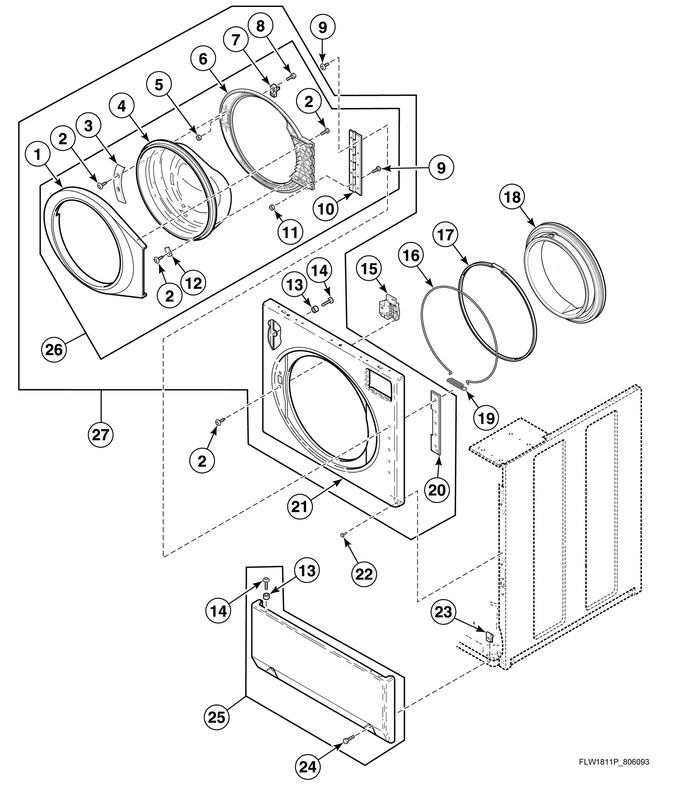

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808094		Outer Door Bezel (comment: White)   (Replaces: 803710WP)			Immediately	$ 112.85
2	800548		Screw			Immediately	$ 4.31
3	804239		Door Glass Mounting Plate		Appelez-nous	-
4	802695P		Door Glass				$ 197.07
5	685846		Nut				$ 7.72
6	808095		Inner Door Bezel Kit   (Replaces: 802307P)			Immediately	$ 89.30
6	808097		Inner Door Bezel (comment: Glass-filled Polypropylene Upgrade)   (Replaces: 804562P)			Immediately	$ 70.73
7	802803		Door Catch Assembly			Immediately	$ 9.37
8	801993		Screw			Immediately	$ 7.72
9	801019		Screw			Immediately	$ 7.31
10	802934		Door Hinge				$ 84.55
11	M0282009		Nut   (Replaces: 23951)				$ 14.07
12	802700		Glass Mounting Clip (comment: 7 Required)			Immediately	$ 7.72
13	56079		Panel Locator			Immediately	$ 7.72
14	39733		Screw				$ 7.72
15	803920		Door Latch Assembly			Immediately	$ 160.83
16	806466		Wire Clamp Ring   (Replaces: 802283)			Immediately	$ 4.70
17	802281		Hose Clamp (comment: Seal To Outer Tub Front)				$ 34.17
18	804428P		Door Seal (comment: Black)			Immediately	$ 230.06
18	804429P		Door Seal Assembly (comment: Gray)			Immediately	$ 321.87
19	806466		Extension Spring   (Replaces: 802285)			Immediately	$ 4.70
20	802206		Hinge Plate				$ 29.34
21	802277WP		Front Panel				$ 231.99
22	D503661		Screw		Appelez-nous	-
23	36020		Nut			Immediately	$ 7.72
24	801045		Screw				$ 4.70
25	D514250WP		Access Panel Assembly			Immediately	$ 98.34
26	808571		Door Assembly (comment: White; Includes Items 1-12)   (Replaces: 804083WP)			Immediately	$ 514.11
27	806505W		Front Panel Assembly Kit (comment: Includes Items 1-14, 20 And 21)				$ 869.72

    View Diagram in Separate Window       Print Part List
