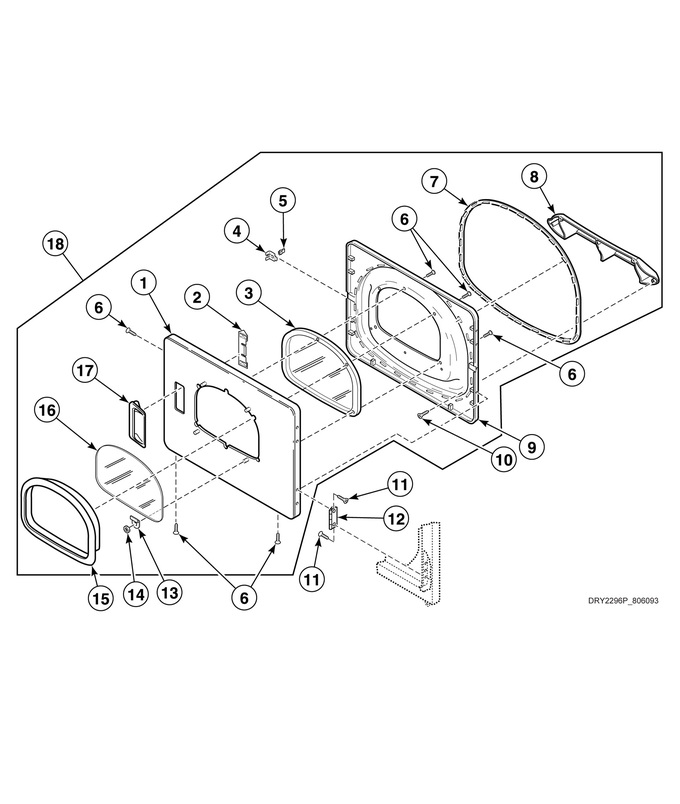

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510082WP		Dryer Door (comment: Through Serial No. 1606000838)				$ 124.04
1	D515961W		Dryer Door (comment: Starting Serial Nos. Beginning 1707)				$ 87.93
2	D510129W		Door Handle Wedge				$ 3.11
3	D503982P		Dryer Door Window (comment: Through Serial Nos. Beginning 1707)				$ 136.42
3	D515681		Dryer Door Window (comment: Glass; Starting Serial Nos. Beginning 1707)				$ 82.14
4	D510127		Door Strike Mount (comment: Through Serial Nos. Beginning 1707)				$ 3.58
5	D510181		Door Strike			Immediately	$ 3.89
6	D500226		Screw (comment: Through Serial No. 1606000838)				$ 4.31
6	D515967		Screw (comment: Starting Serial Nos. Beginning 1707)		Appelez-nous	-
7	D510147P		Liner Door Seal (comment: Through Serial Nos. Beginning 1707)				$ 27.88
8	D503870W		Door Liner Grill (comment: Through Serial No. 1606000838 And Starting Again With Serial Nos. Beginning 1707)			Immediately	$ 37.69
9	D516509		Liner And Seal Assembly (comment: Includes Seal; Starting Serial Nos. Beginning 1707)		Appelez-nous	-
9	D510098W		Liner And Seal Assembly (comment: Includes Item 7; Through Serial No. 1606000838)				$ 116.10
10	D505870		Screw				$ 7.72
11	D505295		Screw				$ 1.63
12	D511036		Hinge			Immediately	$ 4.70
13	-		Not On Your Model		Appelez-nous	-
14	-		Not On Your Model		Appelez-nous	-
15	D515956W		Window Trim (comment: Starting Serial Nos. Beginning 1707)				$ 82.98
15	D503981W		Window Trim (comment: Through Serial No. 1606000838)				$ 104.43
16	-		Not On Your Model		Appelez-nous	-
17	D510103WP		Door Pull And Wedge Kit			Immediately	$ 9.37
18	D511636WP		Door And Liner Assembly (comment: White; Includes Items 1-10, 15 And 17; Through Serial No. 1606000838)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
