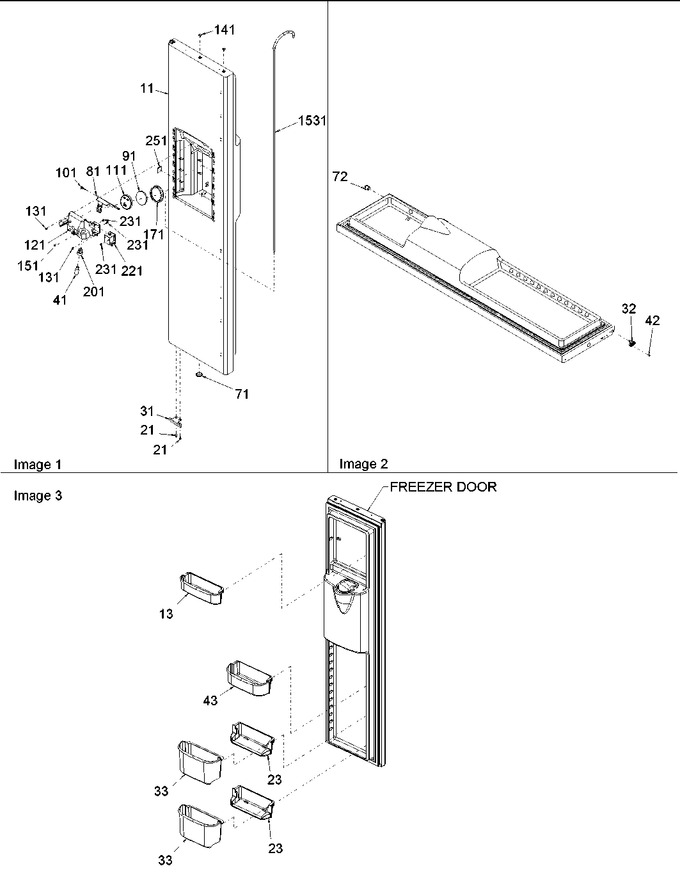

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12584902WQ		Assy, Fz Dr Foam (wht)		Appelez-nous	-
13	12556901		Bucket, Upr Fz Dr		Appelez-nous	-
21	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
23	12569401		Frame, Tilt Bucket		Appelez-nous	-
31	12636401W		Stop, Door (wht)		Appelez-nous	-
32	12571301W		Closure, Door (wht)		Appelez-nous	-
33	12569302		Bucket, Fz Tilt Xxx		Appelez-nous	-
41	W10857122		Light Bulb   (Replaces: M0360001)				$ 13.83
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.44
43	12557501		Bucket, Lwr Fz Dr				$ 17.64
71	A3080001		Plug, Button (blk)		Appelez-nous	-
72	12395501W		Bushing, Door (wht)		Appelez-nous	-
81	12563201		Hinge, Ice Chute		Appelez-nous	-
91	12563401		Insul, Chute Doorxx		Appelez-nous	-
101	WP12565502		Spring, Chute Dr   (Replaces: 12565502)				$ 7.81
111	12562701		Door, Ice Chute				$ 5.84
121	12662901		Extension,ice Chute		Appelez-nous	-
131	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
141	M0311605		Plug, Button (wht)		Appelez-nous	-
151	67002816		Clip, Waterline   (Replaces: 12619501)				$ 18.24
171	12665101		Seal, Ice Chute				$ 5.84
201	12617501		Socket, Light		Appelez-nous	-
221	12575401		Solenoid		Appelez-nous	-
231	WP488234		Screw, Mach   (Replaces: M0200314)				$ 6.74
251	M0104102		Clip, Cord				$ 8.10
1531	67004938		Assy, Waterline   (Replaces: 12615503)				$ 132.60
