SELECT A DIAGRAM

Access Panel, Front Panel And Seal (drawing 4 Of 5)


Air Duct (drawing 3 Of 3)


Base, Side Panels And Rear Panel


Blower Housing And Shields


Control Cabinet (10 Degree Front Models)


Control Cabinet Line Filter


Controls (10 Degree Front Models)


Dispenser Assembly


Door Assembly And Door Seal


Drain Hose And Pump (drawing 1 Of 2)


Drain Hose And Pump (drawing 2 Of 2)


Dryer Cabinet, Exhaust Duct And Base


Dryer Door With Window (drawing 2 Of 2)


Dryer Labels


Fill Hose


Front Bulkhead, Felt Seal And Cylinder


Front Panel


Heater Duct And Element Assembly (electric Models)


Heater Kit Assembly (electric Models)


Idler Assembly


Inner Basket, Trunnion, Bearing Housing And Pulley


Mixing Valve And Valve-to-dispenser Hose


Motor And Belt


Motor, Exhaust Fan And Belt


Outer Tub, Front And Clamp Ring


Overlay (10 Degree Front Models)


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Shipping Materials


Special Tools


Washer Junction Box


Washer Labels


Washer Lead-in Cord, Wire Ties And Harness Clips


Wire Harnesses And Wires (drawing 1 Of 2)


Wire Harnesses And Wires (drawing 2 Of 2)

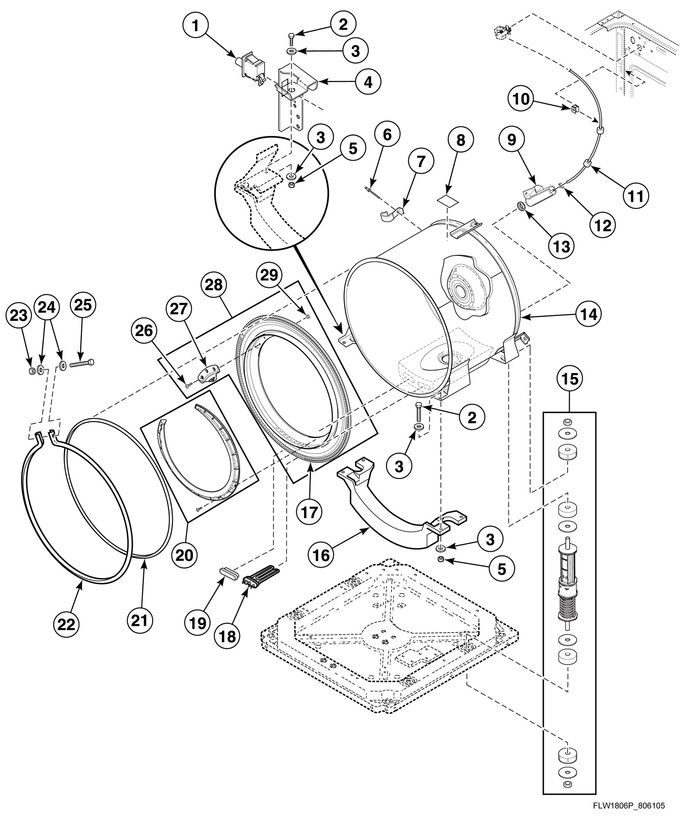

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	803415		Out-of-balance Switch Assembly			Immediately	$ 15.40
2	800461		Screw				$ 3.56
3	804458		Washer		Appelez-nous	-
4	804457		Out-of-balance Switch Bracket		Appelez-nous	-
5	800452		Nut			Immediately	$ 0.83
6	685847		Pop Rivet		Appelez-nous	-
7	800553		Hose Clip		Appelez-nous	-
8	D500049		Warning Label		Appelez-nous	-
9	803837		Pressure Bulb		Appelez-nous	-
10	36985		Hose Clip		Appelez-nous	-
11	804483		Pressure Sensor Tube Assembly				$ 18.51
12	803891		Hose Clamp		Appelez-nous	-
13	29175		Grommet				$ 9.51
14	803864		Outer Tub Assembly				$ 1,355.39
15	803777P		Shock Assembly (comment: Must Replace All 4)   (Replaces: 803777)			Immediately	$ 148.67
16	803810		Counterweight		Appelez-nous	-
17	803770		Tub Front			Immediately	$ 72.91
18	-		Not On Your Model		Appelez-nous	-
19	-		Not On Your Model		Appelez-nous	-
20	806361		Foreign Object Deflector (comment: Tall; Gray; Includes Screws)			Immediately	$ 59.39
20	806313		Foreign Object Deflector (comment: Gray; Includes Screws)				$ 62.84
20	806308		Foreign Object Deflector (comment: Black; Includes Screws)			Immediately	$ 55.05
21	803801		Tub Front Seal				$ 17.68
22	803802		Clamp Ring				$ 79.16
23	F430218		Nut				$ 7.72
24	M400081		Washer				$ 4.58
25	800462		Screw				$ 10.07
26	802596		Screw				$ 7.72
27	804467		Clothes Guard Deflector			Immediately	$ 13.54
27	805548		Clothes Guard Deflector (comment: Heavy Duty)			Immediately	$ 15.77
28	803879		Tub Front Assembly (comment: Includes Items 17, 24, 25 And 27)				$ 164.90
29	802343		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
