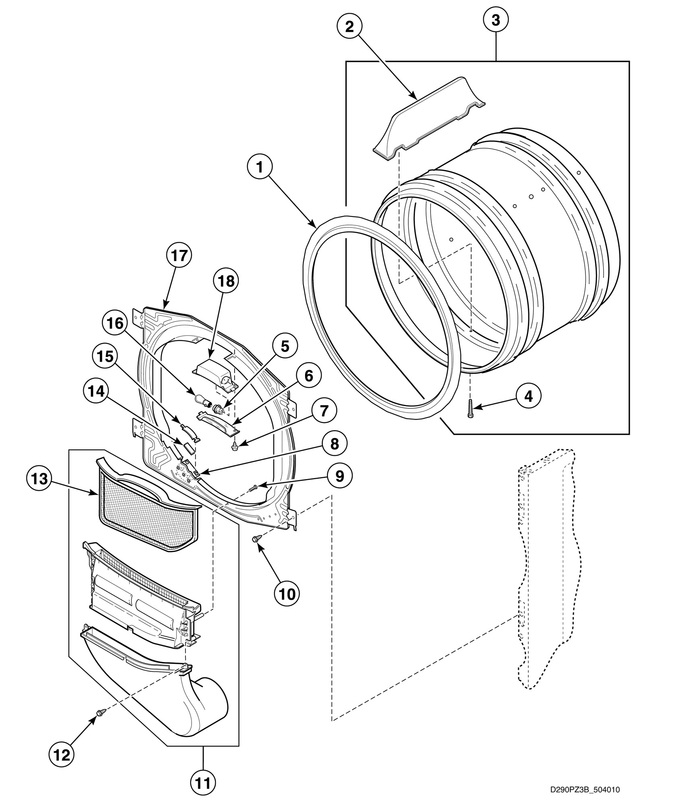

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510207P		Cylinder Seal Assembly			Immediately	$ 54.41
2	D503703		Cylinder Baffle		Appelez-nous	-
3	D510159W		Cylinder Assembly (comment: White; Includes Items 2 And 4)		Appelez-nous	-
4	62588		Screw				$ 7.72
5	D504452		Light Housing Assembly		Appelez-nous	-
6	D512106		Drum Light Lens				$ 9.97
7	D505870		Screw				$ 7.72
8	D510145		Cylinder Glide Bracket				$ 15.61
9	D500226		Screw				$ 4.31
10	D503661		Screw		Appelez-nous	-
11	750P3W		Air Duct And Door Liner Kit (comment: Includes Item 13)   (Replaces: 750P3)				$ 239.81
12	D501285		Screw				$ 3.07
13	D503627		Lint Filter		Appelez-nous	-
14	D510189		Felt Pad				$ 4.70
15	D513710		Cylinder Glide (comment: 1 Required Per Side)			Immediately	$ 10.49
16	60954		Drum Light Lamp				$ 26.89
17	D511033W		Front Bulkhead Assembly (comment: White)		Appelez-nous	-
18	N/A		Cylinder Light Housing		Appelez-nous	-
NA	D511637		Adhesive (comment: Cylinder Seal To Bulkhead)		Appelez-nous	-
