SELECT A DIAGRAM

Component Group 1


Cabinet, Exhaust Duct And Base


Cabinet Top And Control Hood Back Panel


Front Bulkhead, Air Duct, Felt Seal And Cylinder


Gas Valve, Igniter And Gas Conversion Kits


Graphic Panel, Control Hood And Controls (drawing 1 Of 7)


Heater Duct - Gas Models Starting Serial No. S6333960xm


Heater Duct - Gas Models Through Serial No. S6333959xm


Loading Door, Front Panels And Access Door


Motor, Exhaust Fan And Belt (drawing 1 Of 2)


Motor, Exhaust Fan And Belt (drawing 2 Of 2)


Power Cord And Terminals


Rear Bulkhead, Felt Seal And Cylinder Roller

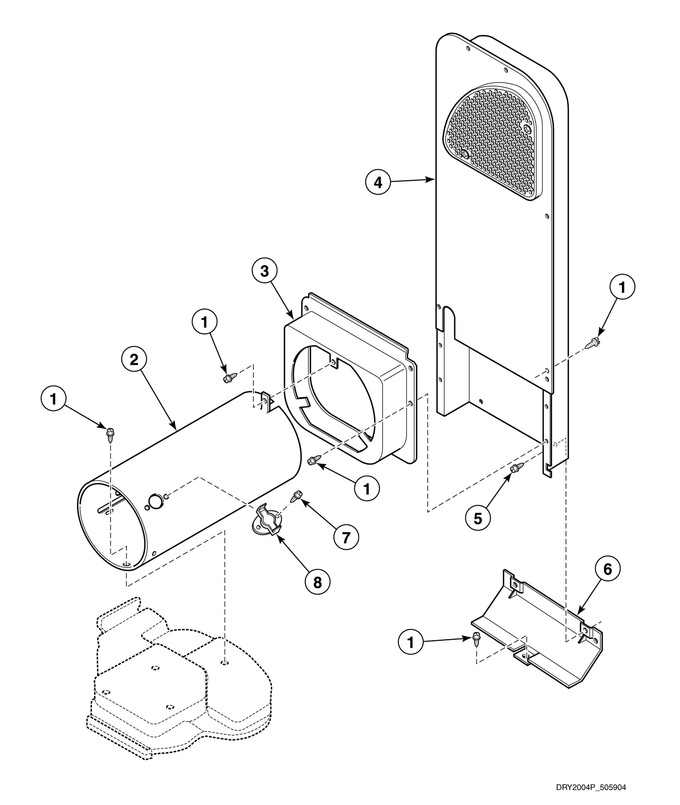

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP27001200		Screw   (Replaces: 33562)				$ 7.68
2	N/A		Combustion Duct Assembly		Appelez-nous	-
3	D510101		Heat Duct Shroud				$ 38.42
4	D510025P		Heater Duct And Screw Assembly				$ 110.99
5	WP3390631		Screw   (Replaces: 51780)				$ 7.82
6	60952		Heat Duct Shield		Appelez-nous	-
7	WP3177991		Screw   (Replaces: 23222)			Immediately	$ 7.19
8	489P3		Thermostat And Plate Kit				$ 40.02

    View Diagram in Separate Window       Print Part List
