SELECT A DIAGRAM

Access Panel


Air Duct


Burner Orifice Spuds - For Higher Elevations (drawing 1 Of 2) (liquid Petroleum Gas Models)


Burner Orifice Spuds - For Higher Elevations (drawing 2 Of 2) (natural Gas Models)


Cabinet, Exhaust Duct And Base


Cabinet Labels


Control Cabinet And Controls


Cylinder, Baffles And Drying Rack


Front Bulkhead And Seal - With Light


Front Panel And Seal


Gas Conversion Kits


Gas Valve And Igniter


Heater Duct Assembly


Loading Door (drawing 1 Of 2)


Motor Connection Block, Terminal Extractor Tools


Motor, Exhaust Fan And Belt (drawing 1 Of 2)


Motor, Exhaust Fan And Belt (drawing 2 Of 2)


Power Cord


Rear Bulkhead, Felt Seal And Cylinder Roller - 1 Phase Models


Strain Relief


Terminal Block - 1 Phase Models


Terminal Block And Terminals


Terminals


Thermostat

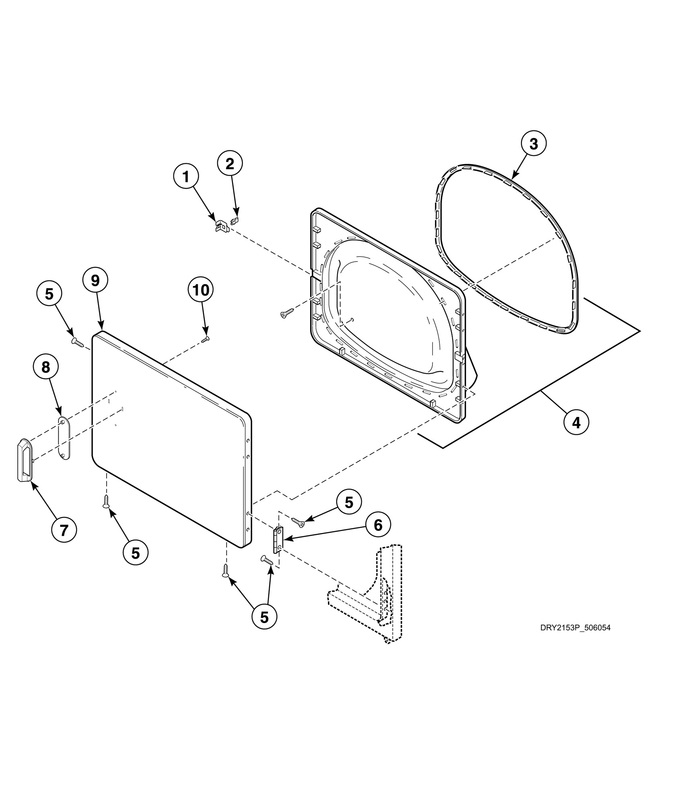

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510127		Door Strike Mount (comment: Through Serial No. Beginning 1707)				$ 3.58
2	D510181		Door Strike (comment: Through Serial No. Beginning 1707)			Immediately	$ 3.89
3	D510147P		Liner Door Seal (comment: Through Serial No. Beginning 1707)				$ 27.88
4	D513109P		Liner And Seal Assembly (comment: Gray)		Appelez-nous	-
5	D500226		Screw   (Replaces: D514461)				$ 4.31
6	D511036		Hinge			Immediately	$ 4.70
7	803095		Door Handle				$ 62.78
8	803094P		Handle Cover				$ 20.63
9	D513156		Dryer Door				$ 607.23
10	800548		Screw			Immediately	$ 4.31

    View Diagram in Separate Window       Print Part List
