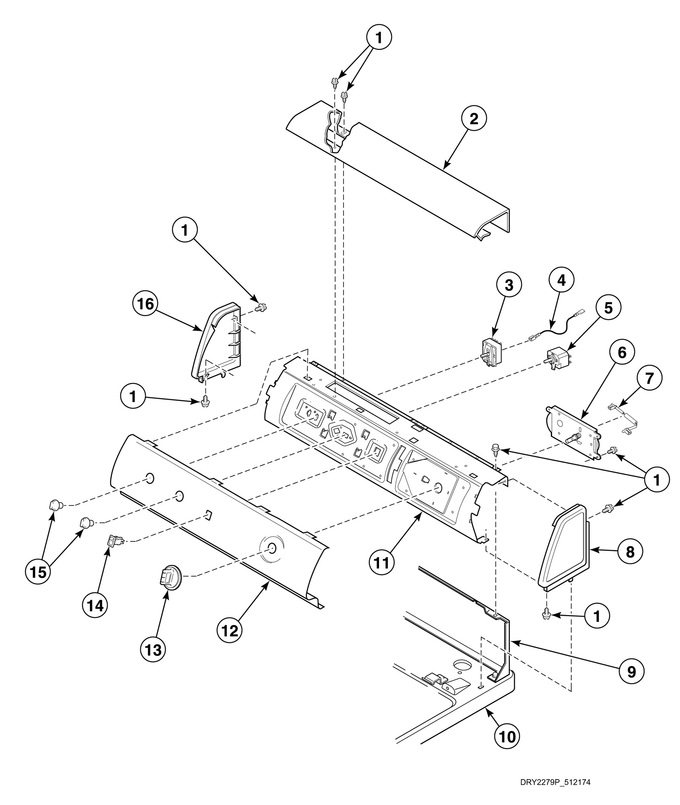

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D501086		Screw			Immediately	$ 7.72
2	D505808W		Top Cover				$ 101.59
3	D513506		Fabric Selector Switch				$ 72.70
4	COMM PART		Wire Assembly (comment: Fabric Selector Switch To Timer)   (Replaces: D510540)		Appelez-nous	-
5	D510211		Buzzer				$ 46.61
6	D511150P		Timer				$ 191.74
7	D511277		Resistor Assembly				$ 15.08
8	D504008WP		End Panel (comment: Right)				$ 21.37
9	D510099		Hood Back Panel				$ 45.40
10	D510029WP		Top Panel Kit			Immediately	$ 492.82
11	D503901		Control Support Panel		Appelez-nous	-
12	D513015W		Graphic Panel		Appelez-nous	-
13	803168P		Knob Assembly			Immediately	$ 10.76
14	38424W		Rocker Switch				$ 9.70
15	803119P		Control Knob Assembly			Immediately	$ 12.46
16	D504009WP		End Panel (comment: Left)			Immediately	$ 24.67
NA	D511148		Wire Assembly (comment: Extra Tumble Use With Item 14)		Appelez-nous	-
