Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D511033WP Front Bulkhead Assembly (comment: White; Includes Items 2 And 12-16) Special Order $ 226.05

1 D510266P Front Bulkhead Assembly (comment: Includes Items 2 And 12-16) Special Order $ 255.61

2 D510207P Cylinder Seal Assembly In-Stock Immediately $ 54.41

2 RB170001 Seal Kit (comment: Includes 2 Cylinder Seals, 510238p Blower Housing Seal And 511637p Adhesive) In-Stock Immediately $ 125.27

2 D511637P Adhesive (comment: Apply To Cylinder Seal) Special Order $ 67.33

3 D510102W Cylinder Baffle (comment: 3 Required) In-Stock Immediately $ 7.78

4 D510159WP Cylinder Assembly (comment: White; Includes Item 3) Special Order $ 574.35

4 D510265WP Cylinder Assembly (comment: Includes Item 3) In-Stock Immediately $ 410.23

5 62588 Screw Special Order $ 7.72

6 D512082P Drying Rack Special Order $ 115.69

7 D503688 Screw In-Stock Immediately $ 7.72

8 D501285 Screw Special Order $ 3.07

9 D518432 Air Duct Assembly   (Replaces: D510151W) Special Order $ 70.91

10 D503980W Lint Filter In-Stock Immediately $ 41.95

11 D510502W Lint Filter Cover In-Stock Immediately $ 10.91

12 Sub. To D512973 Screw   (Replaces: 52864) Appelez-nous -
13 RB170003 Glide Kit (comment: Includes 2 Of Items 14 And 15) In-Stock Immediately $ 40.80

14 D513710 Cylinder Glide (comment: 2 Required) In-Stock Immediately $ 10.49

15 D510189 Felt Pad (comment: 2 Required) Special Order $ 4.70

16 D510145 Cylinder Glide Bracket (comment: 2 Required) Special Order $ 15.61

17 D500226 Screw   (Replaces: D514461) Special Order $ 4.31


    View Diagram in Separate Window     Print Icon   Print Part List

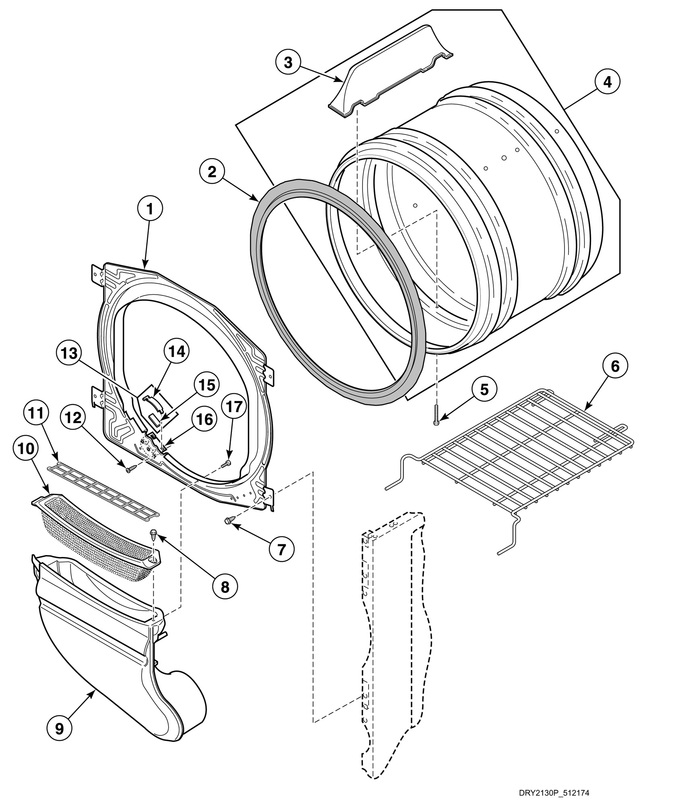

Diagram for KGS18AWF
