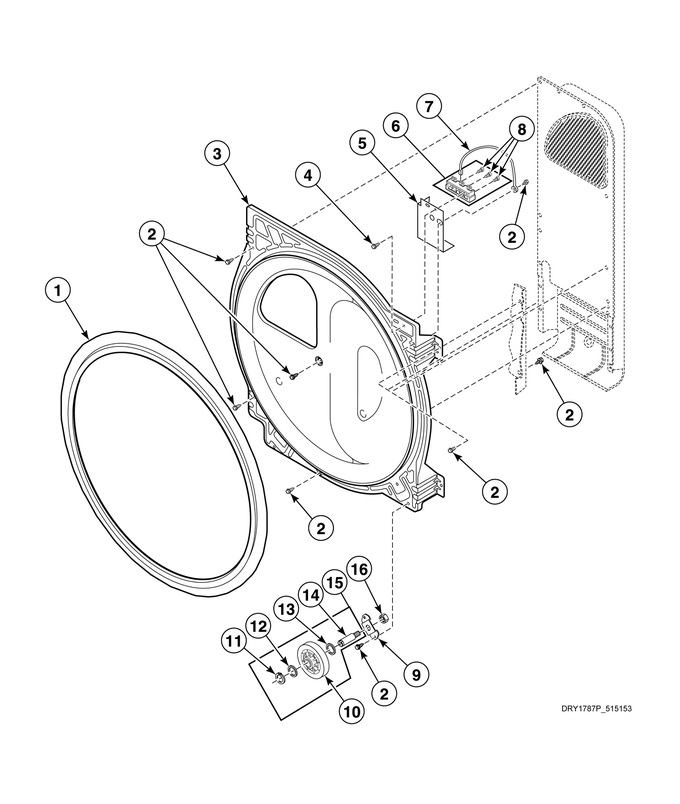

Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Front Control Models (drawing 1 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D511637P		Adhesive (comment: Apply To Cylinder Seal)				$ 67.33
1	RB170001		Seal Kit (comment: Includes 2 Cylinder Seals, D510238p Blower Housing Seal And Adhesive)			Immediately	$ 125.27
1	D510207P		Cylinder Seal Assembly			Immediately	$ 54.41
2	D503688		Screw			Immediately	$ 7.72
3	D510905WP		Rear Bulkhead Assembly (comment: White; Includes Item 1)				$ 255.59
3	D510043		Rear Bulkhead Assembly (comment: Includes Item 1)		Appelez-nous	-
4	-		Not On Your Model		Appelez-nous	-
5	D510237		Terminal Block Shield (comment: All Other Electric Models)				$ 16.12
6	-		Not On Your Model		Appelez-nous	-
7	D510550		Ground Wire Assembly		Appelez-nous	-
8	WP3400094		Screw   (Replaces: 61199)				$ 7.93
9	D510100		Cylinder Roller Bracket			Immediately	$ 7.72
10	D510708P		Cylinder Roller			Immediately	$ 16.71
11	WP23748		Retaining Ring   (Replaces: 23748)			Immediately	$ 11.94
12	WP233520		Washer   (Replaces: 52549)			Immediately	$ 7.96
13	D504082		Washer			Immediately	$ 4.70
14	56461P		Shaft			Immediately	$ 9.37
15	RB170002		Roller Kit (comment: Includes 2 Each Of Items 10-14)			Immediately	$ 69.50
16	56156		Nut				$ 7.72
