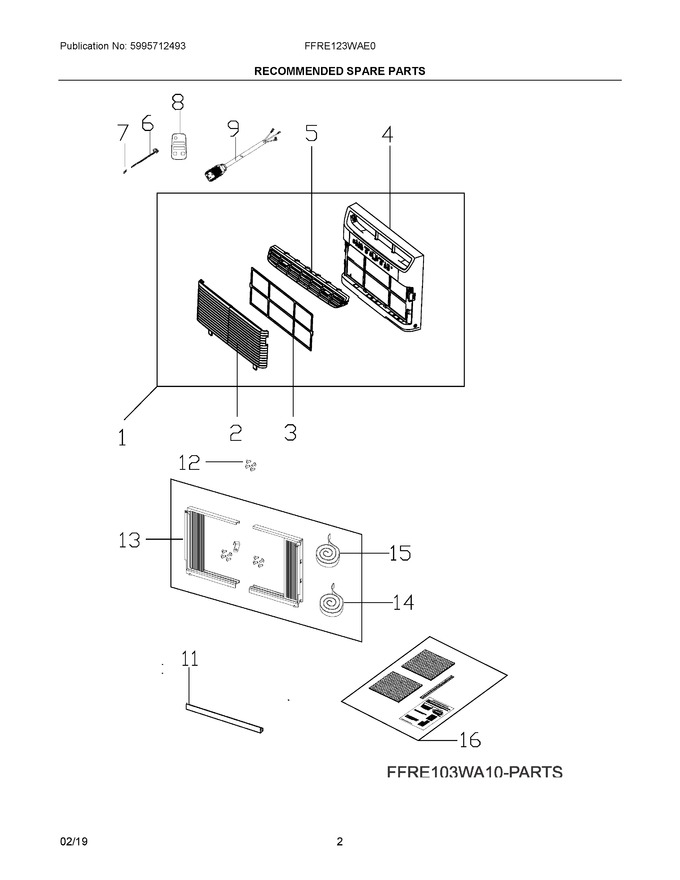

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304476848 | Front Assembly, Complete Panel |
|
$ 140.75 | |||||
| 2 | 5304476793 | Panel, Front Grille, Tilt-out |
|
$ 33.08 | |||||
| 3 | 5304535830 | Filter, Air, Plastic Frame (Replaces: 5304476794) |
|
$ 7.39 | |||||
| 4 | 5304476849 | Frame, Front Assembly |
|
$ 36.14 | |||||
| 5 | 5304476796 | Louver, Vertical |
|
- | |||||
| 6 | 5304476178 | Door, Vent Control, With Lever |
|
- | |||||
| 7 | 5304520877 | Sleeve, Vent Door Assy, Guide (Replaces: 5304476179) |
|
- | |||||
| 8 | 5304501878 | Remote Control, Transmitter (Replaces: 5304476851) |
|
$ 102.58 | |||||
| 9 | 5304536807 | Power Cord, Electric, Lcdi (Replaces: 5304500884) |
|
$ 140.95 | |||||
| 11 | 5304504780 | Rail, Shutter Track, Top Angle |
|
- | |||||
| 12 | 5304520879 | Screw, Top-rail |
|
- | |||||
| 13 | 5304523820 | Insulation (Replaces: 5304520882) |
|
- | |||||
| 14 | 5304520810 | Seal |
|
- | |||||
| 15 | 5304520837 | Seal |
|
- | |||||
| 16 | 5304520883 | Insulation |
|
- |
