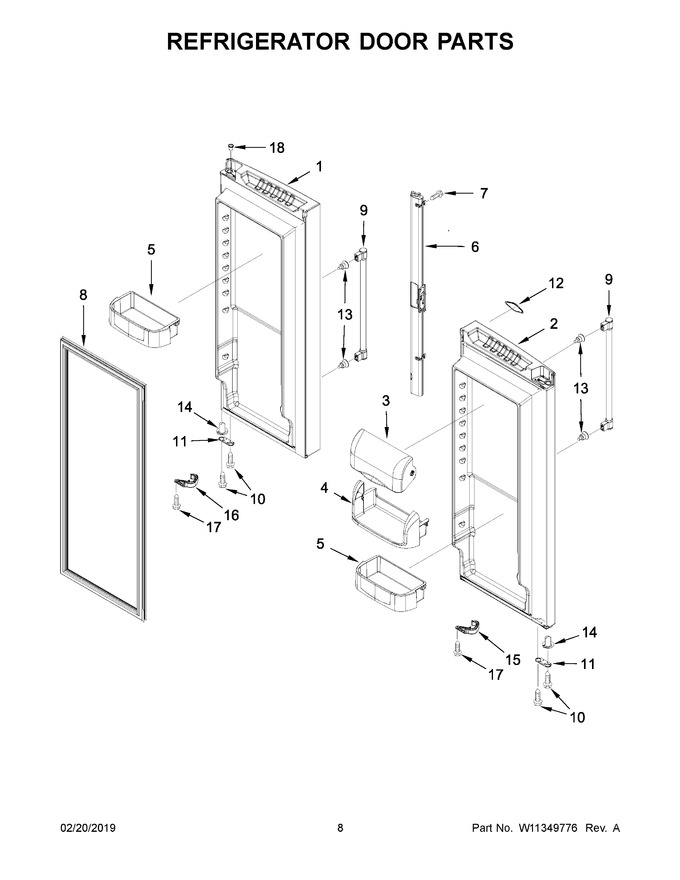

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107888WQ | Door, Refrigerator Left Hand (white) (Replaces: 13107888W) |
|
$ 995.87 | |||||
| 2 | 13107887WQ | Door, Refrigerator Right Hand (white) (Replaces: 13107887W) |
|
$ 1,004.76 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 323.15 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830189 | Gasket, Door (white) |
|
$ 283.41 | |||||
| 9 | W10918556 | Handle, Door (white) (Replaces: W10891380) |
|
$ 189.54 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 12 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 13 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 14 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 15 | W10918120 | Latch, Door Closer Right Hand (white) (Replaces: W10833738) |
|
Immediately | $ 17.01 | ||||
| 16 | W10918118 | Latch, Door Closer Left Hand (white) (Replaces: W10833740) |
|
$ 17.01 | |||||
| 17 | WP489474 | Screw (Replaces: 12990519) |
|
Immediately | $ 8.55 | ||||
| 18 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 5A | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 |
