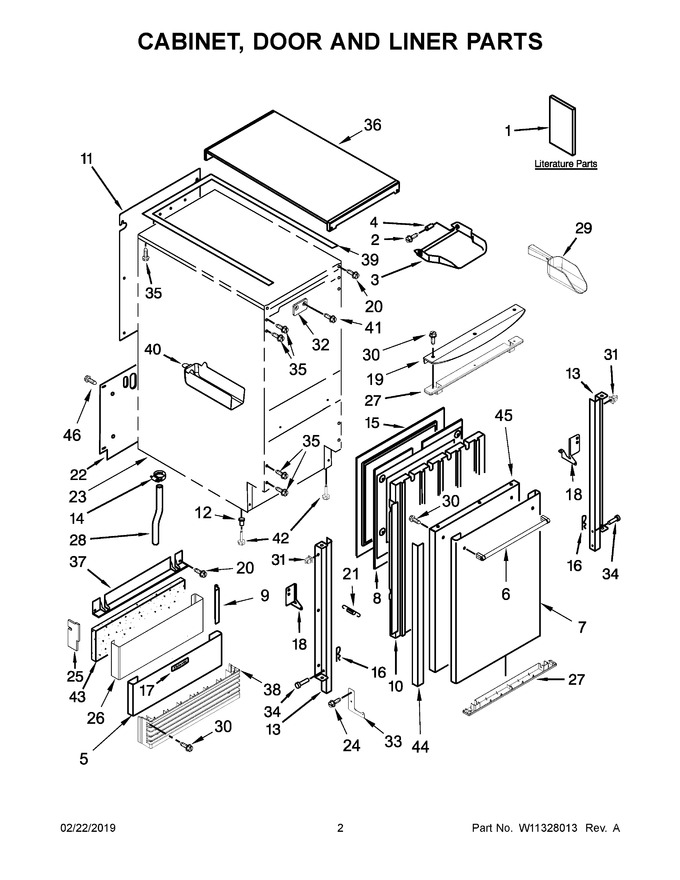

02 - Cabinet, Door And Liner Parts
03 - Evaporator, Grid, And Water Parts
04 - Pump Parts
05 - Control Panel Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11246207 | Use & Care Guide |
|
- | |||||
| 2 | 3400886 | Screw (stainless) |
|
$ 5.65 | |||||
| 3 | 2208354 | Bin, Door |
|
- | |||||
| 4 | 2185678 | Spacer |
|
$ 11.03 | |||||
| 5 | W11296659 | Panel, Wrap Lower (stainless) |
|
$ 280.98 | |||||
| 6 | W11450233 | Handle, Door (stainless) (Replaces: W10710254) |
|
$ 181.46 | |||||
| 7 | W11368704 | Wrap, Exterior Panel (stainless) (Replaces: W11261635) |
|
$ 691.29 | |||||
| 8 | W10563026 | Panel, Interior |
|
- | |||||
| 9 | 2208596B | Grommet, Edge Guard |
|
- | |||||
| 10 | W11325208 | Insulation (Replaces: W11024833) |
|
- | |||||
| 11 | W10218024 | Ballast, Back |
|
- | |||||
| 12 | 3400240 | Nut |
|
- | |||||
| 13 | 2217466 | Bracket, Door (left Hand) |
|
- | |||||
| 14 | W10670799 | Clamp, Hose |
|
Immediately | $ 24.87 | ||||
| 15 | W11624959 | Gasket, Door (Replaces: 2217295) |
|
$ 244.84 | |||||
| 16 | W11545866 | Clip (Replaces: W10136142) |
|
$ 11.88 | |||||
| 17 | W10909682 | Nameplate (stainless) (Replaces: W10518673) |
|
Immediately | $ 76.20 | ||||
| 18 | 2208425 | Hinge (left Hand) |
|
- | |||||
| 19 | WP2208452B | Assembly, Magnet Endcap (Replaces: 2208452B) |
|
$ 115.37 | |||||
| 20 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 8.55 | ||||
| 21 | WP2208570 | Spring, Hinge (Replaces: 2208570) |
|
$ 23.79 | |||||
| 22 | W11261690 | Assembly, Unit Cover |
|
- | |||||
| 23 | N/P | Cabinet & Liner (not Serviced) |
|
- | |||||
| 24 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 25 | 2217225 | Pad, Foam |
|
- | |||||
| 26 | 2208382B | Panel, Lower (black) |
|
- | |||||
| 27 | W11413461 | Endcap, Door (black) (Replaces: 2208350B) |
|
- | |||||
| 28 | W10737551 | Tube, Drain |
|
$ 74.12 | |||||
| 29 | W10508276A | Scoop (Replaces: W10508276) |
|
- | |||||
| 30 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 31 | WP692400 | Screw Grommet (Replaces: 692400) |
|
Immediately | $ 8.02 | ||||
| 32 | 2208434 | Strike, Magnet |
|
- | |||||
| 33 | 2208487 | Bracket, Spring |
|
- | |||||
| 34 | 2208417 | Pin, Hinge |
|
- | |||||
| 35 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 36 | W10320118 | Top (black) |
|
- | |||||
| 37 | 2208383B | Endcap, Panel (black) |
|
- | |||||
| 38 | WP2217206B | Grill, Front (black) (Replaces: 2217206B) |
|
$ 116.28 | |||||
| 39 | 2217296 | Gasket, Top Panel |
|
- | |||||
| 40 | W10557773 | Holder, Scoop |
|
- | |||||
| 41 | 8281191 | Screw |
|
$ 6.77 | |||||
| 42 | 8193716 | Leg, Leveling (Replaces: 3374849) |
|
Immediately | $ 88.96 | ||||
| 43 | 2208384 | Insulation, Lower Panel |
|
- | |||||
| 44 | 2208595B | Grommet, Edge Guard (black) |
|
- | |||||
| 45 | 2208352B | Panel, Door (inner) (black) |
|
- | |||||
| 46 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 13A | 2217465 | Bracket, Door (right Hand) |
|
- | |||||
| 18A | 2208426 | Hinge (right Hand) |
|
- | |||||
| 1A | W10761657 | Tech Sheet |
|
- | |||||
| 1B | W11255279 | Installation Instructions |
|
- |
