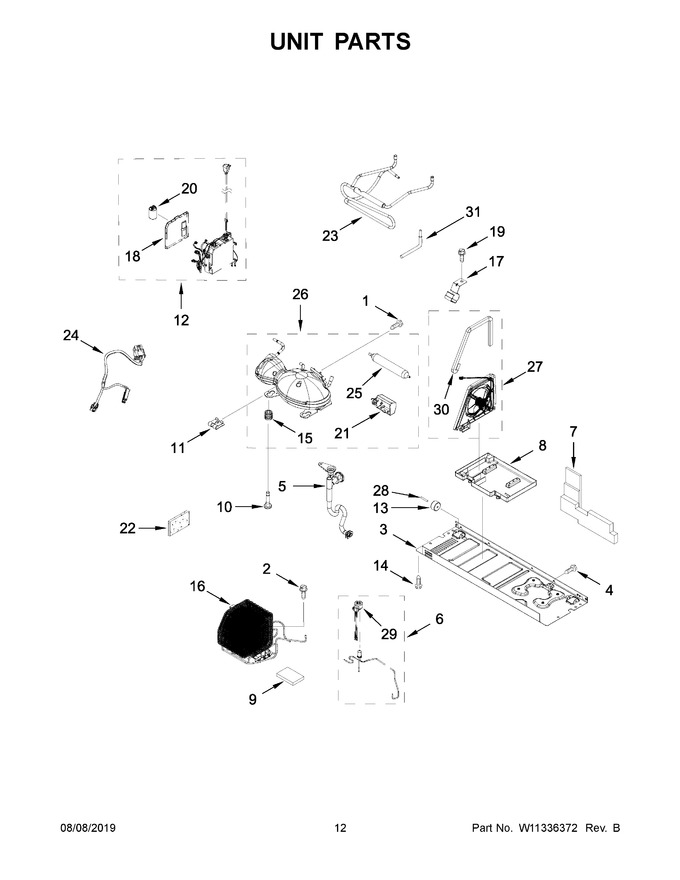

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 2 | W10820084 | Screw |
|
- | |||||
| 3 | W10658357 | Baseplate |
|
$ 82.28 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | W11745091 | Assembly, Drain Extension (Replaces: W10860180) |
|
$ 77.32 | |||||
| 6 | W11575001 | Assembly, 3 Way Valve (Replaces: W11084143) |
|
$ 111.47 | |||||
| 7 | W11688785 | Pad, Sound (Replaces: W10838081) |
|
$ 76.85 | |||||
| 8 | W10877573 | Tray, Evaporator |
|
$ 160.69 | |||||
| 9 | W10884826 | Grommet, Condenser |
|
- | |||||
| 10 | W10697007 | Bolt |
|
- | |||||
| 11 | W10697017 | Clip, Retaining |
|
- | |||||
| 12 | W11336586 | Assembly, Orion Box (include Wiring Harness For Compressor And Power Cord) (Replaces: W11317283) |
|
Immediately | $ 448.33 | ||||
| 13 | W10774846 | Roller |
|
$ 90.76 | |||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | W10836504 | Grommet, Compressor |
|
$ 18.25 | |||||
| 16 | W11548259 | Condenser (Replaces: W11199416) |
|
Immediately | $ 195.99 | ||||
| 17 | W10391376 | Bracket, Valve |
|
$ 35.03 | |||||
| 18 | W11198954 | Cover, Housing |
|
- | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 20 | W10792503 | Filter, Emi |
|
$ 95.69 | |||||
| 21 | W11592194 | Cover, Terminal (Replaces: W10701009) |
|
$ 49.90 | |||||
| 22 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 23 | W11443923 | Assembly, Suction Tube (Replaces: W11199420) |
|
$ 93.70 | |||||
| 24 | W10858511 | Harness, Unit (condenser Fan) |
|
$ 147.90 | |||||
| 25 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 26 | W11592010 | Compressor (Replaces: W11393142) |
|
Immediately | $ 1,119.99 | ||||
| 27 | W11024494 | Assembly, Condenser Fan (Replaces: W10883082) |
|
$ 199.57 | |||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 29 | W11429989 | Coil, 3 Way Valve (Replaces: W10709318) |
|
Immediately | $ 215.28 | ||||
| 30 | W10683708 | Gasket, Condenser Fan |
|
- | |||||
| 31 | W11323726 | Tube, Process (Replaces: W10735062) |
|
$ 40.49 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | N/P | Refrigerant Charge 4.65 Oz. (r134a) |
|
- |
