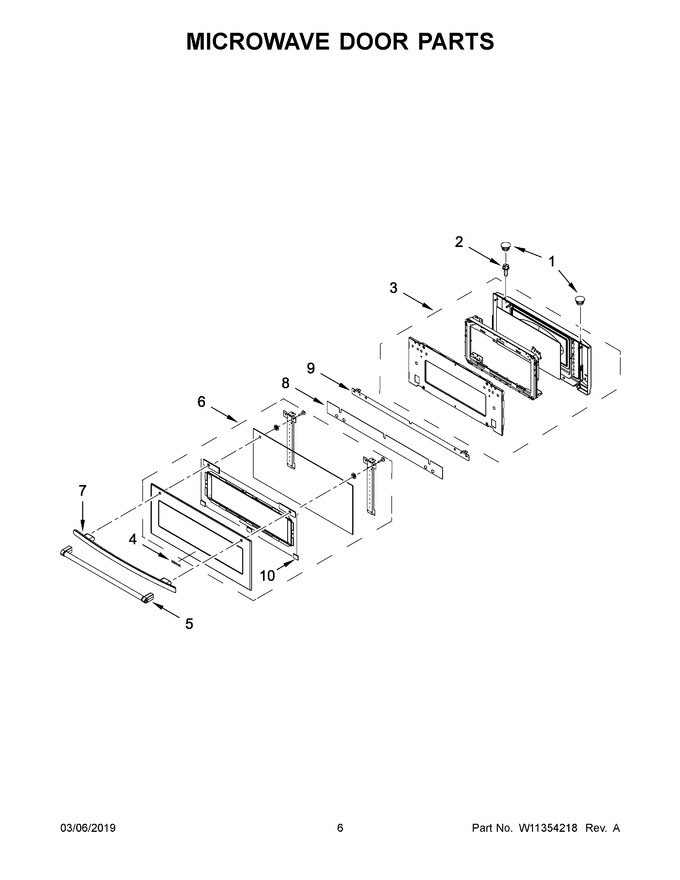

04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
3	W11684570		Assembly, Inner Door   (Replaces: W10687342)			Immediately	$ 593.74
4	WPW10214168		Badge (black)   (Replaces: W10190724)				$ 85.95
5	W11234410		Assembly, Door Handle (stainless (pro-style Models))   (Replaces: W10483386)				$ 237.48
6	W10527390		Assembly, Outer Door (black)				$ 436.67
7	W10550998		Assembly, Door Handle (black)		Appelez-nous	-
8	W10359769		Foam, Door Handle				$ 14.76
9	W10407600		Bracket, Balancing Door (black Model Only)				$ 42.98
10	WPW10517428		Spacer, Vent (stainless & Pro-style Only)   (Replaces: W10517428)			Immediately	$ 12.44
4A	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 85.95
4B	WPW10159578		Badge (stainless (pro-style Models))   (Replaces: W10159578)			Immediately	$ 88.54
6A	W10457801		Assembly, Outer Door (stainless)			Immediately	$ 546.12
7A	W11195001		Assembly, Door Handle (stainless)   (Replaces: W10551013)				$ 229.46
