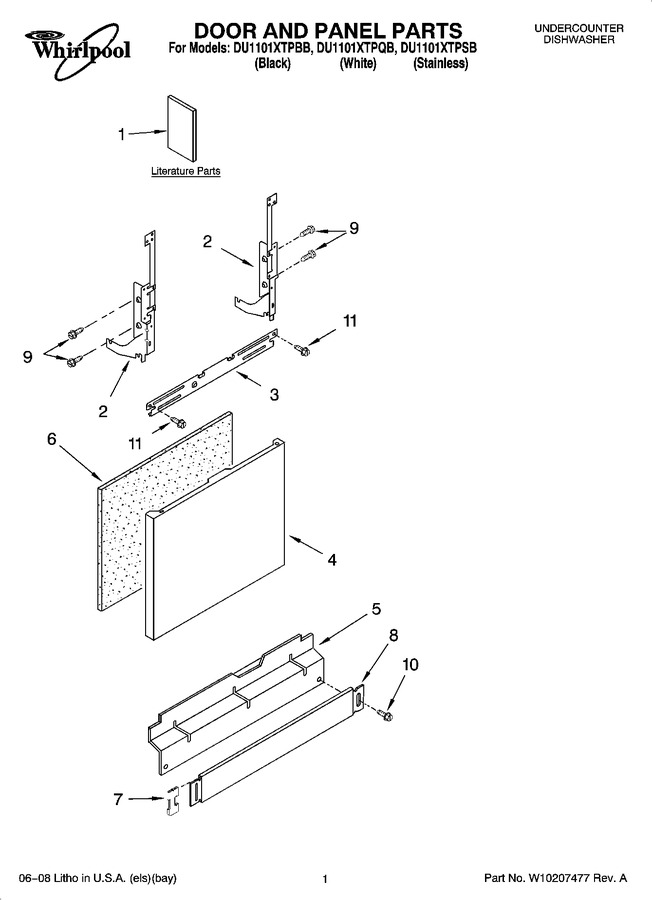

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142914		Instructions, Installation		Appelez-nous	-
1	W10130986		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10133161		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10130990		Tech Sheet		Appelez-nous	-
1	W10179462		Energy Guide		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front (includes 7) (white)		Appelez-nous	-
4	W10301571		Panel Front (includes 7) (black)   (Replaces: 8269841)				$ 398.59
4	W10301577		Panel Front (includes 7) (stainless)   (Replaces: W10137625)				$ 399.50
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
6	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
7	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
8	W10871196		Toe Panel (includes Clip) (black)   (Replaces: 8573286)				$ 174.04
8	WP8573287		Toe Panel (includes Clip) (white)   (Replaces: 8573287)				$ 177.69
9	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
10	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
10	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
11	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
