View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls
05 - Motor
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

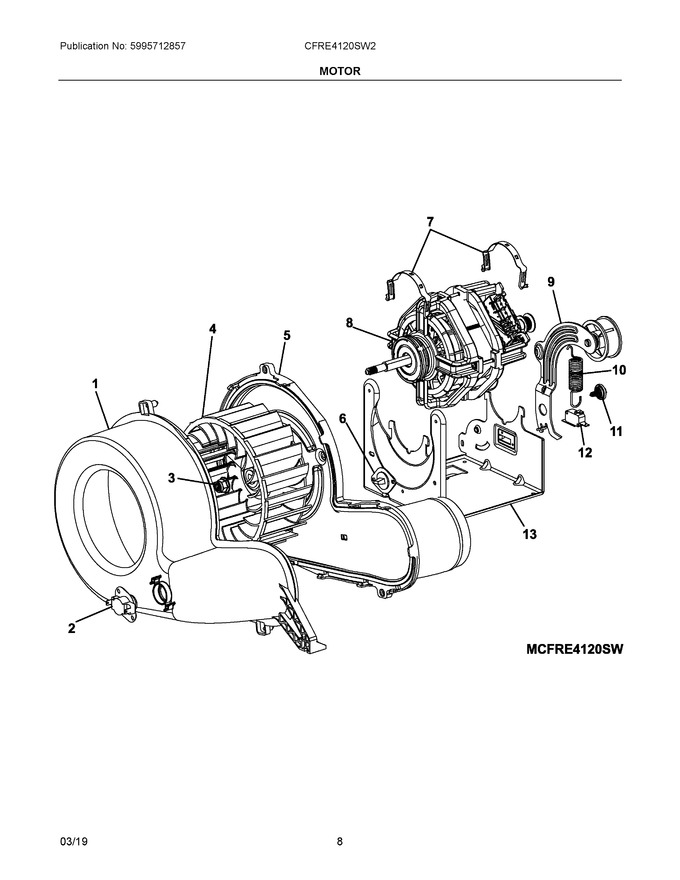

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304538042 | Housing, Blower, Front (Replaces: 5304511423) |
|
Immediately | $ 77.30 | ||||
| 2 | 5304511424 | Thermostat, Blower Housing |
|
$ 103.28 | |||||
| 3 | 5304511425 | Nut, Blower Wheel |
|
$ 12.44 | |||||
| 4 | 5304511426 | Wheel, Blower |
|
$ 83.33 | |||||
| 5 | 5304538042 | Housing, Blower, Rear (Replaces: 5304511427) |
|
Immediately | $ 77.30 | ||||
| 6 | 5304511428 | Thermostat, Temperature |
|
Immediately | $ 84.05 | ||||
| 7 | 5304511429 | Clip, Spring, Motor |
|
$ 21.98 | |||||
| 8 | 5304511430 | Motor, Single Phase |
|
$ 541.57 | |||||
| 9 | 5304538043 | Pulley Assembly, Belt Tension, W/support (Replaces: 5304511431) |
|
$ 30.92 | |||||
| 10 | 5304511432 | Spring, Pulley Tension |
|
$ 13.88 | |||||
| 11 | 5304511433 | Screw |
|
$ 10.56 | |||||
| 12 | 5304511434 | Switch, Safety |
|
$ 34.52 | |||||
| 13 | 5304511435 | Bracket, Motor Support |
|
- |
