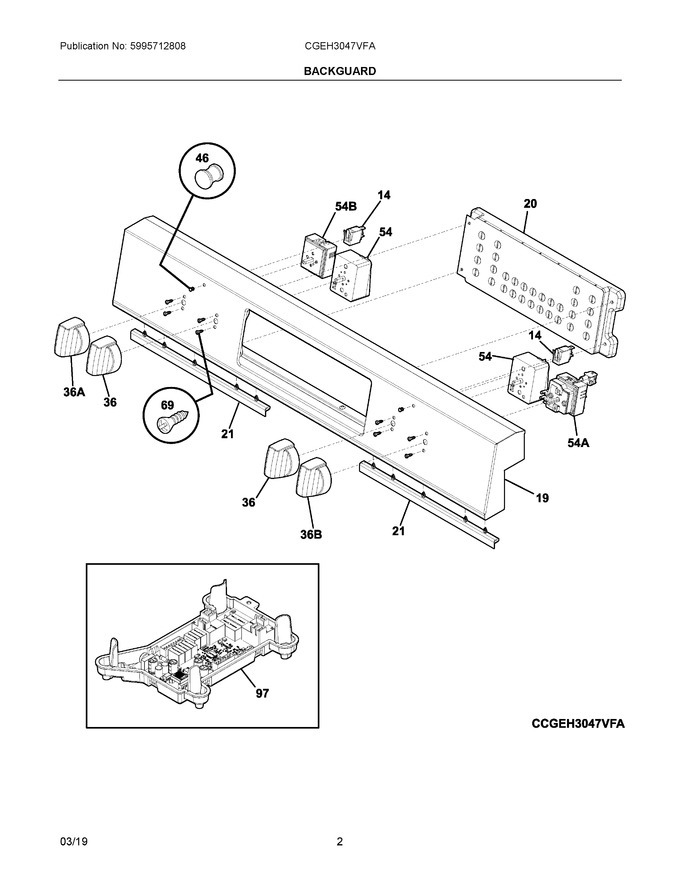

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
19	5304521013		Control Panel, Front, Stainless			Immediately	$ 325.87
20	5304526193		Controller, Electronic, Black, Es501e   (Replaces: 5304516860)			Immediately	$ 349.73
21	5304521020		Seal, Control Panel			Immediately	$ 80.53
36	5304521003		Knob, Infinite Switch, Stainless, Single				$ 86.79
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
97	5304516862		Pc Board, Assembly, Ovc3			Immediately	$ 367.41
36A	5304521004		Knob, Infinite Switch, Stainless, Dual			Immediately	$ 94.37
36B	5304521007		Knob, Infinite Switch, Stainless, Triple				$ 95.21
54A	807004702		Switch, Triple, Infinite			Immediately	$ 139.65
54B	316238202		Switch, Infinite Radian, Dual			Immediately	$ 142.75
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	5304521010		Harness, Wiring, Backsplash				$ 209.81
NIA	5304521041		Insulator, Controller, W/adhesv Tape				$ 16.01
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
