View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet/drum
03 - Front Panel/lint Filter

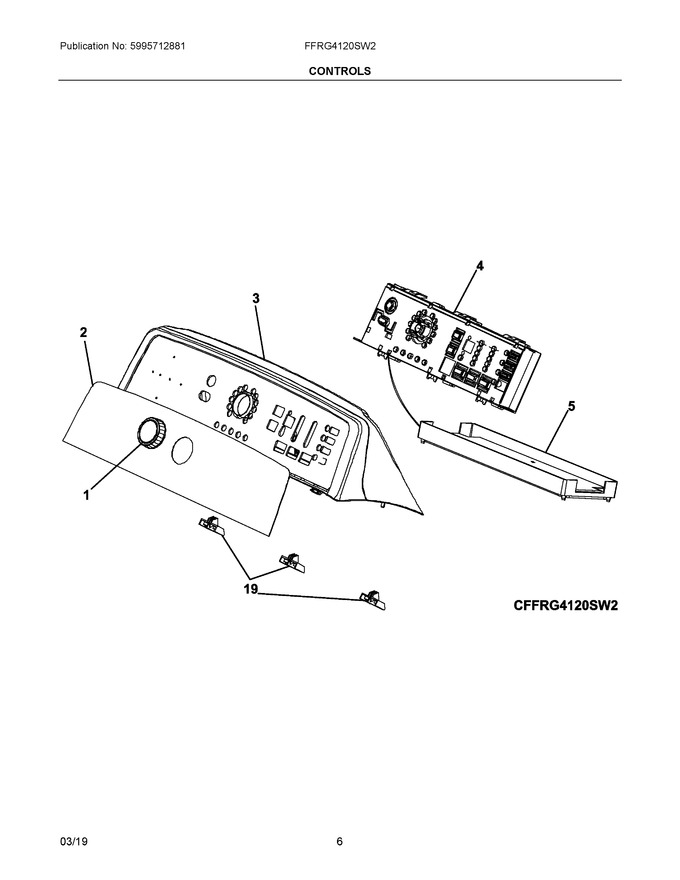

04 - Controls
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511364 | Knob, Assembly |
|
$ 43.67 | |||||
| 2 | 4056015409 | Overlay, Control Panel, White (Replaces: 5304511419) |
|
- | |||||
| 3 | 5304511420 | Control Panel, Assembly, White |
|
- | |||||
| 4 | 5304521160 | Pc Board, Assembly, Display |
|
$ 371.24 | |||||
| 5 | 5304521159 | Pc Board, Assembly, Main |
|
$ 329.31 | |||||
| 19 | 5304511422 | Bracket, Control Panel |
|
- |
