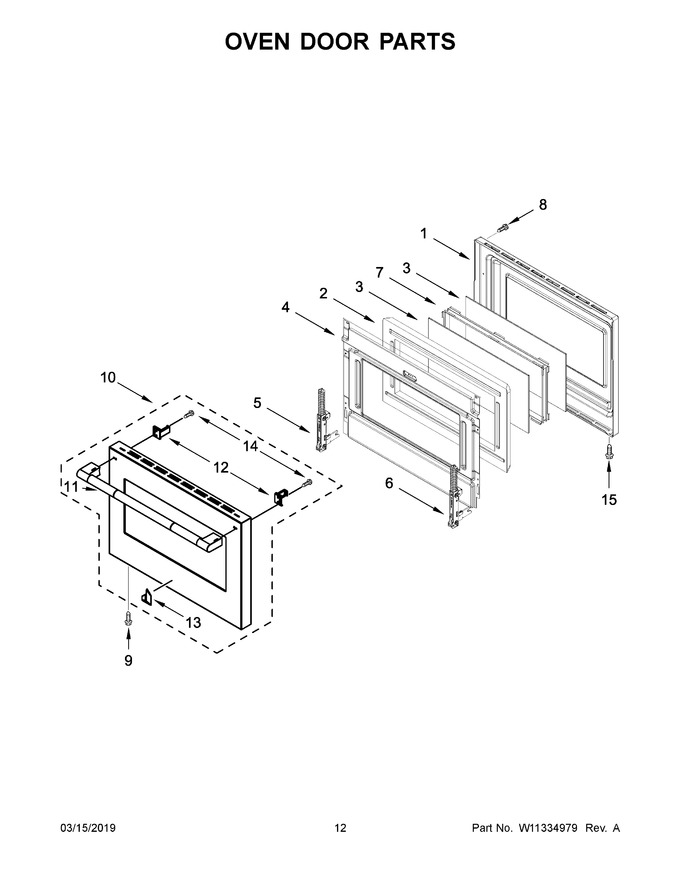

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318831 | Liner, Door (Replaces: W11036771) |
|
Immediately | $ 430.01 | ||||
| 2 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 106.43 | |||||
| 3 | W11318823 | Glass, Inner (Replaces: W11184409) |
|
$ 175.72 | |||||
| 4 | W11318344 | Retainer, Glass (Replaces: W11194821) |
|
Immediately | $ 184.62 | ||||
| 5 | W11643630 | Hinge, Door (left) (Replaces: W11096974) |
|
Immediately | $ 195.56 | ||||
| 6 | W11643898 | Hinge, Door (right) (Replaces: W11096973) |
|
Immediately | $ 142.45 | ||||
| 7 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 197.39 | ||||
| 8 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 9 | W10162096 | Screw |
|
$ 21.90 | |||||
| 10 | W11321883 | Assembly, Outer Door Glass (includes Handle) (Replaces: W10799308) |
|
Immediately | $ 1,130.61 | ||||
| 11 | W11317501 | Handle, Door (Replaces: W11102826) |
|
- | |||||
| 12 | W11317513 | Bracket, Handle (Replaces: W11197830) |
|
$ 78.81 | |||||
| 13 | W11317500 | Badge (stainless) (Replaces: W11238656) |
|
$ 111.47 | |||||
| 14 | WPW10276043 | Screw (Replaces: W10276043) |
|
$ 7.30 | |||||
| 15 | W11193480 | Screw (Replaces: W10607120) |
|
$ 14.72 |
