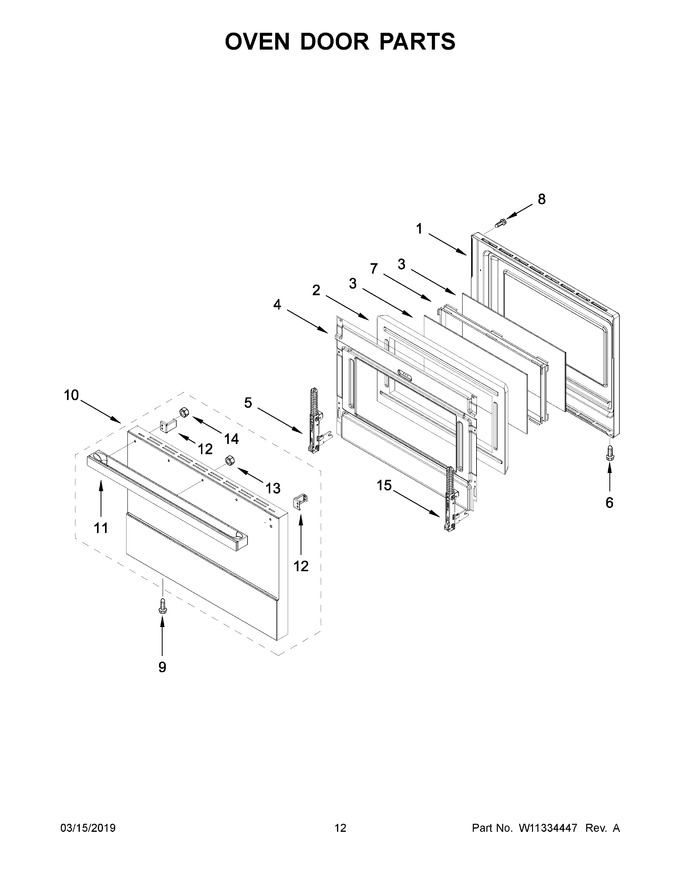

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318831 | Liner, Door (Replaces: W11036771) |
|
Immediately | $ 430.01 | ||||
| 2 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 106.43 | |||||
| 3 | W11318823 | Glass, Inner (Replaces: W11184409) |
|
$ 175.72 | |||||
| 4 | W11318344 | Retainer, Glass (Replaces: W11194821) |
|
Immediately | $ 184.62 | ||||
| 5 | W11568941 | Hinge, Door (left) (Replaces: W11096980) |
|
Immediately | $ 115.01 | ||||
| 6 | W11193480 | Screw (Replaces: W10607120) |
|
$ 14.72 | |||||
| 7 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 197.39 | ||||
| 8 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 23.31 | |||||
| 9 | W10162096 | Screw |
|
$ 21.90 | |||||
| 10 | W11315556 | Assembly, Outer Door Glass (includes Handle) (Replaces: W10870221) |
|
$ 2,435.98 | |||||
| 11 | W11317893 | Handle, Door (Replaces: W11125541) |
|
- | |||||
| 12 | W11317894 | Bracket, Handle (Replaces: W11194816) |
|
- | |||||
| 13 | W11198435 | Nut |
|
- | |||||
| 14 | 999299 | Nut |
|
- | |||||
| 15 | W11568813 | Hinge, Door (right) (Replaces: W11096979) |
|
Immediately | $ 84.80 |
